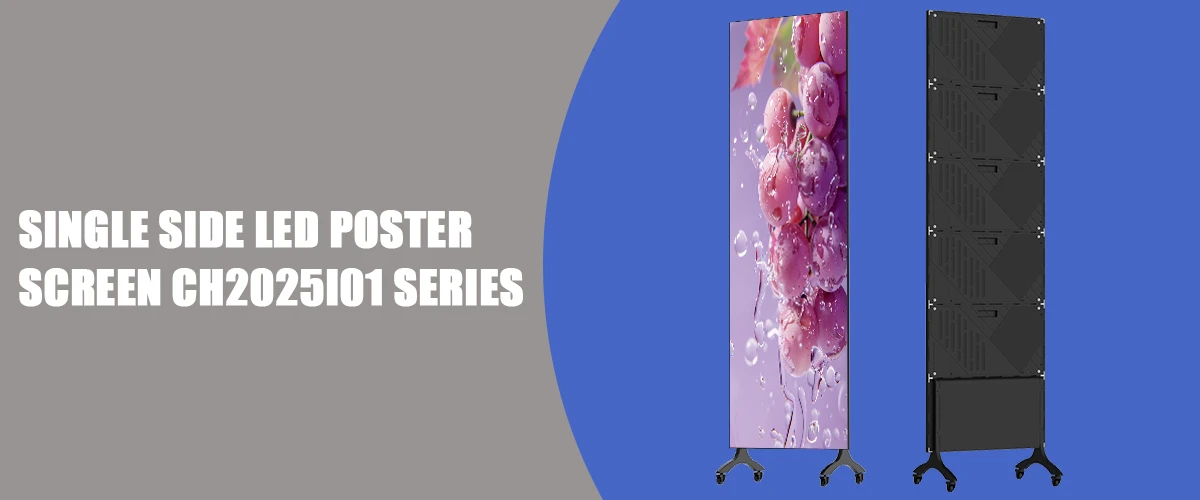

Ultra-thin single-sided LED poster screen
A single-sided LED poster display refers to an LED display with only one display area, typically used to showcase static images, dynamic videos, text information, etc. It employs LED dot matrix display technology, presenting images and text by controlling the on/off state of LED lights. CHIFE LED designs this poster screen and publishes new products now and then.
Main Features
High Resolution: The pixel pitch of a single-sided LED poster display is small, capable of rendering detailed and clear images and text, meeting the needs for high-definition display.
High Brightness and Contrast: LED displays offer high brightness and contrast, ensuring good visibility even in brightly lit environments.
Energy-saving and Environmentally Friendly: LED displays are designed with low power consumption, making them more energy-efficient and environmentally friendly compared to traditional display devices.
Easy Installation and Maintenance: Single-sided LED poster displays often adopt a modular design, facilitating easy installation and disassembly. Additionally, their maintenance costs are relatively low, making repairs and replacements straightforward.
Multiple Display Modes: Supports static images, dynamic videos, text information, and other display modes, adaptable to various needs.
Die-casting Aluminum BodySuper High Flatness
CH2025I01 Series cabinet Standard Size series LED display with ultra thin cabinet design, the thickness is 30mm.Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

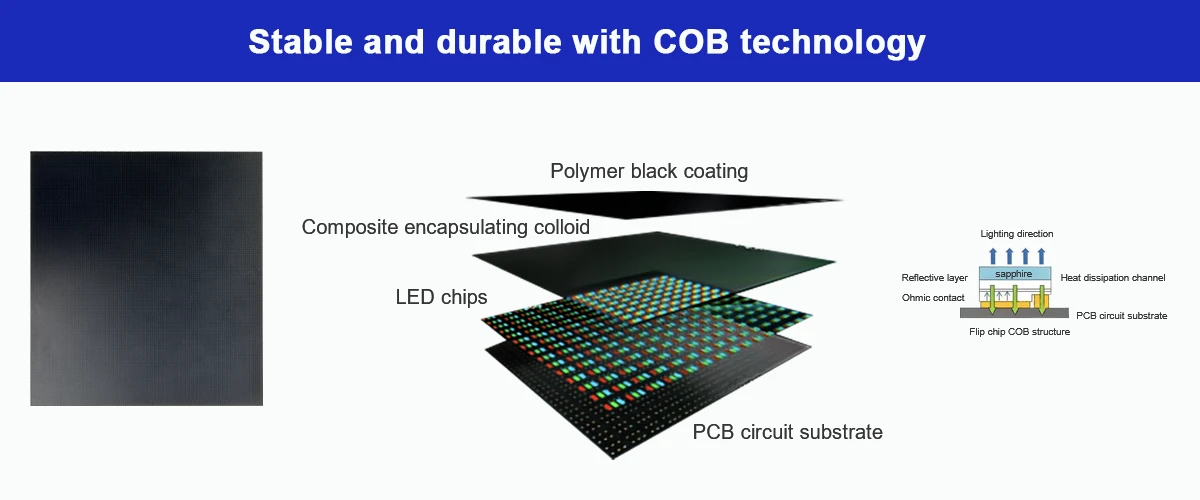

Stable and durable with COB technology
CH2025I01 Series LED display with standard size panel: 150x168.75mm. COB LED technology offers superior pixel pitch, energy efficiency, higher contrast, smoother surface and better reliability for the ultimate viewing experience and lifelike colors.

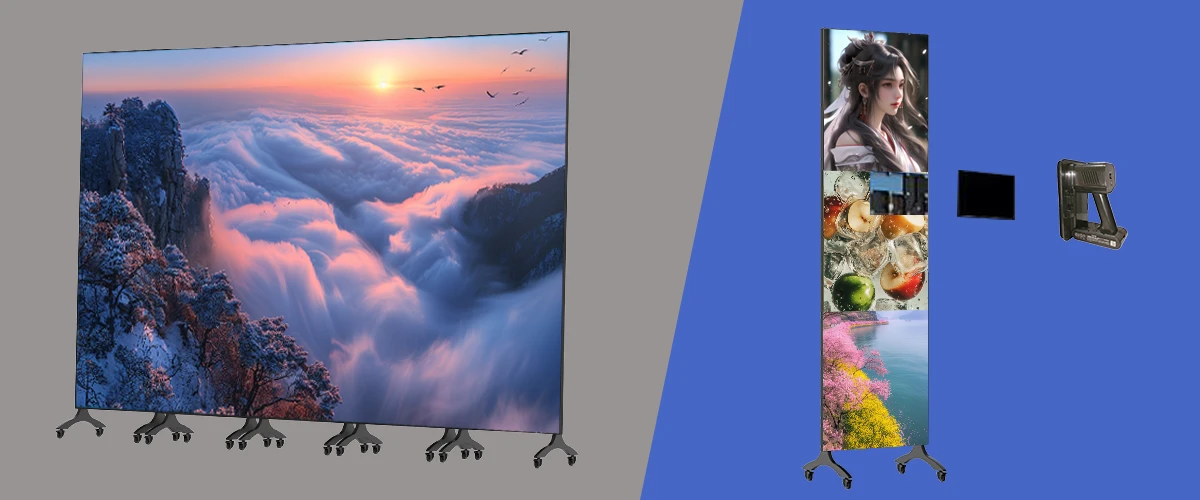

Front serviceable and easy operation
The CH20250I01 poster LED display adopts a hub connection design, and replacement or repair only takes 5 seconds, greatly improving maintenance efficiency.Support multile screens splicing without gap，the poster LED wall can be played as a large screen, or it can be played alone.

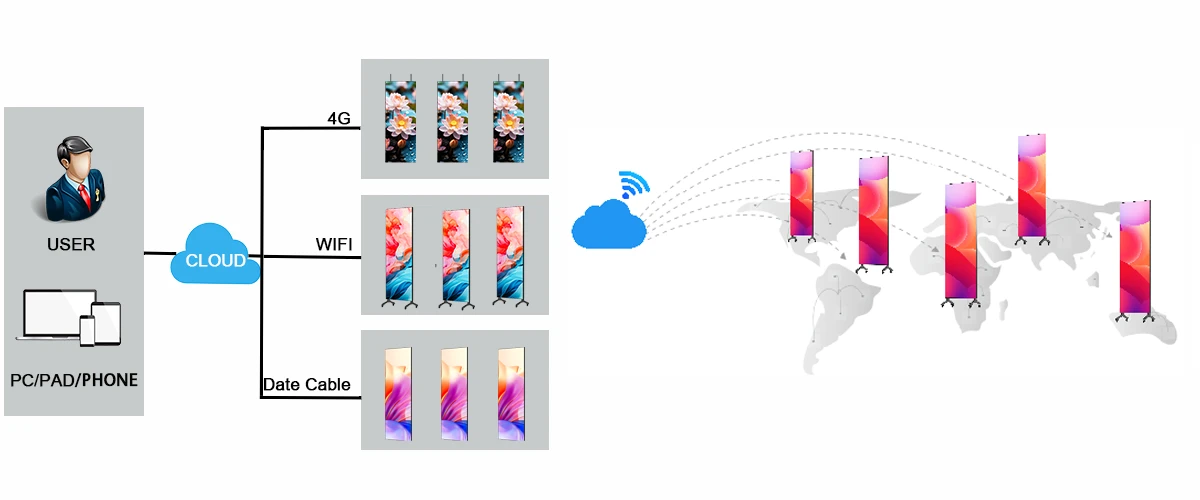

Multiple control & play modes
CH20250I01 series poster LED screen support synchronous & asynchronous control system,the LED screen content can be updated via ipad, phone, PC computer, or notebook.Real time play, Cross-platform publish. Support USB or WIFI,Support operation by IOS or Android devices.Support built-in media player to store and play content.

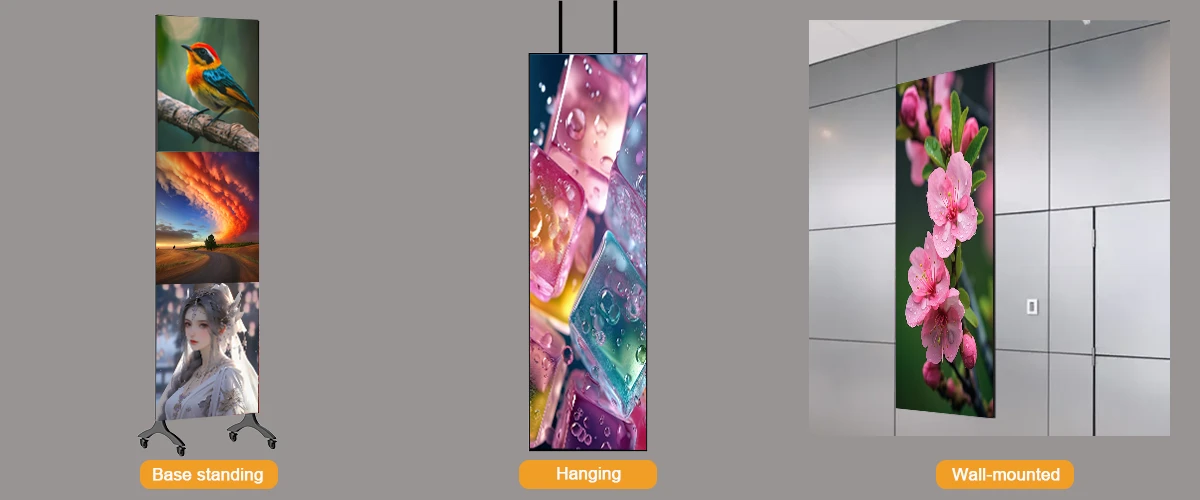

Multiple instalation methods
Parameter table
| Pixel | P1.25 | P1.5625 | P1.875 | P2.5 |
| Model | CH2025I01-P1.25 | CH2025I01-P1.5625 | CH2025I01-P1.875 | CH2025I01-P2.5 |
| LED type | SMD1010(COB) | SMD1010/1212(COB) | SMD1010/1515) | SMD1010/1515 |
| Physical Density(Dots/㎡) | 640000 | 409600 | 284444 | 160000 |

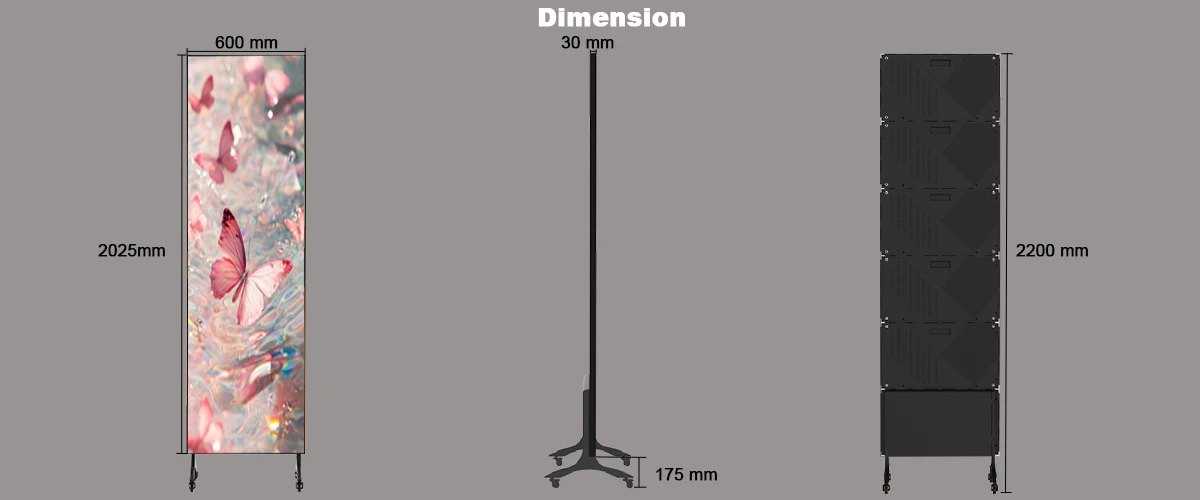

| Screen dimension(mm) | 600X2025X30 | 600X2025X30 | 600X2025X30 | 600X2025X30 |
| Physical Density（dots） | 480X1620 | 384X1296 | 320X1080 | 240X810 |
| Screen weight(kg) | 31.4 | 31.4 | 31.4 | 31.4 |
| Control mode | USB/LAN/WIFI/4G cloud(Optional） | USB/LAN/WIFI/4G cloud(Optional） | USB/LAN/WIFI/4G cloud(Optional） | USB/LAN/WIFI/4G cloud(Optional） |
| Maintenance mode | Front | Front | Front | Front |
| Materials | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Brightness(Nits) | ≥600 | ≥600 | ≥600 | ≥600 |
| Color temperature(K) | 1000-18500 adjustable | 1000-18500 adjustable | 1000-18500 adjustable | 1000-18500 adjustable |
| Viewing angle(H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Luminance/Color Uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
| Constrast ratio | 15000 : 1 | 15000 : 1 | 15000 : 1 | 15000 : 1 |
| Frame Frequency | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan mode | Constant，1/45scan | Constant，1/48scan | Constant，，1/45scan | Constant，1/45scan |
| Gray scale | 16bit | 16bit | 16bit | 16bit |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Max consumption(W/㎡) | 420 | 420 | 420 | 420 |
| Avg. consumption(W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 |
| Poewr voltage rane | AC90-264V,47-63Hz | |||
| Working temp/Humidity(℃/RH) | -20~60℃/10%~85% | |||
| Stock temp/Humidity(℃/RH) | -20~60℃/10%~85% | |||
| Standard | CCC/CE/RoHS/FCC/CB/TUV/IEC/BIS | |||
