CHIFUYI is the leading manufacturer of customized LED display screens. Know more..

CHM01-Outdoor LED display module

The outdoor LED display modules ranging from P3 to P16 pixel pitch, are widely used and can be found everywhere in our daily lives.

The outdoor LED module features an IP65 rating for dust and water resistance. This durability is achieved through a combination of robust rubber seals and a precision PCB board. With a brightness exceeding 5500 nits, it is ideal for outdoor environments with direct sunlight exposure.

Outdoor-LED-display-module-02

Custom optional LED display resolution

The outdoor LED display modules support customized pixel pitches, such as P3,P4,P5,P6,P8.P10.P12,P16,and so on,we can make the right pixel pitch LED screen according to your requirement.

Outdoor-LED-display-module-03

High brightness and wide viewing angle

Our outdoor displays offer extremely to 6500 nits brightness to ensure clear visibility even in direct sunlight, coupled to arrive 160° wide viewing angles for comfortable viewing experiences.

Outdoor-LED-display-module-04

IP65 waterpoof

The LED display modules have IP65 protection rate,it ensures that our displays can operate reliably in rain, snow, and other adverse weather conditions.

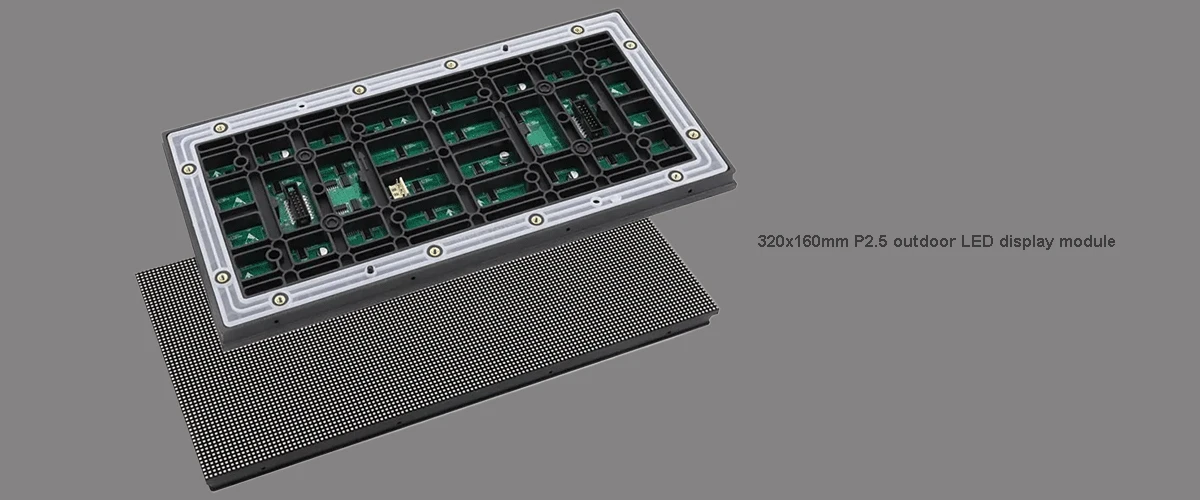

320x160mm series outdoor LED display module

Pixel Pitch LED Type Module Size(MM) Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P2.5mm SMD1415 320*160 128*64 1/16 3840 5,000
P3.076mm SMD1415 320*160 104*52 1/13 1920 / 3840 5000
P4mm SMD1921 320*160 80*40 1/10 1920 / 3840 5500
P5mm SMD2727 320*160 64*32 1/8 1920 / 3840 6000
P5mm SMD1921 320*160 64*32 1/8 1920 / 3840 5500
P6.67mm SMD3535 320*160 48*24 1/6 1920 / 3840 6000
P8mm SMD3535 320*160 40*20 1/5 1920 / 3840 5500
P10mm SMD3535 320*160 32*16 1/2 1920 / 3840 5800
P10mm SMD3535 320*160 32*16 1/4 1920 / 3840 4500

320×160 energy-saving series outdoor LED display module

Pixel Pitch LED Type Module Size(MM) Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P3.33mm SMD1415 320*160 96x48 1/12 3840 5,500
P4mm SMD1921 320*160 80*40 1/10 3840 5500
P5mm SMD1921 320*160 64*32 1/8 3840 5000
P5mm SMD2727 320*160 64*32 1/8 3840 5500
P6.67mm SMD2727 320*160 48*24 1/6 3840 5500
P8mm SMD3535 320*160 40*20 1/5 3840 5000
P10mm SMD3535 320*160 32*16 1/2 3840 6000

Other series outdoor LED display module

Pixel Pitch LED Type Module Size(MM) Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P2.5mm SMD1415 160*160 64*64 1/16 3840 5000
P3mm SMD1415 192*192 64*64 1/16 1920 / 3840 5500

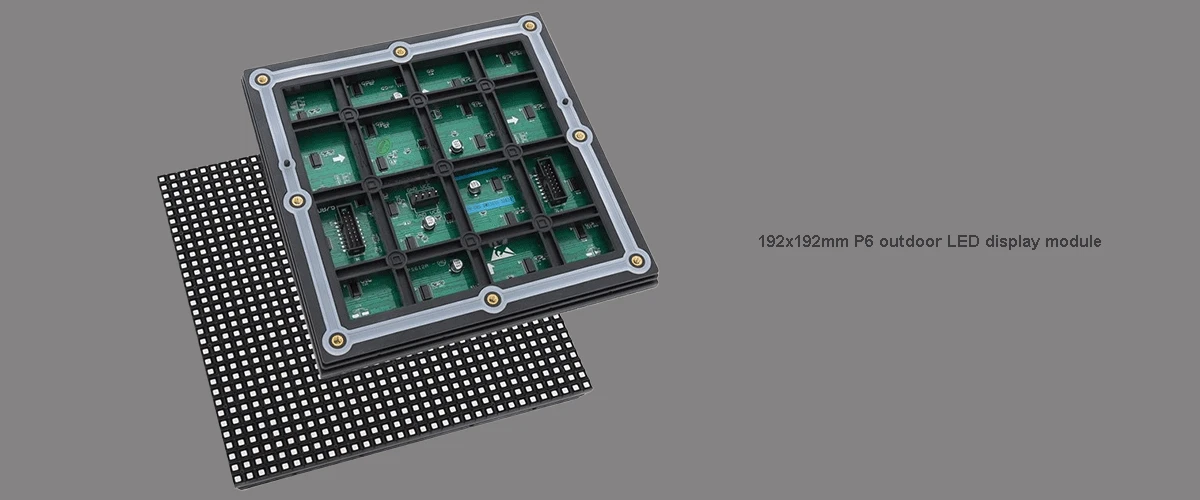

P6mm SMD2727 192*192 32*32 1/6 1920 / 3840 5500
P6mm SMD3535 192*192 32*32 1/8 1920 / 3840 6000

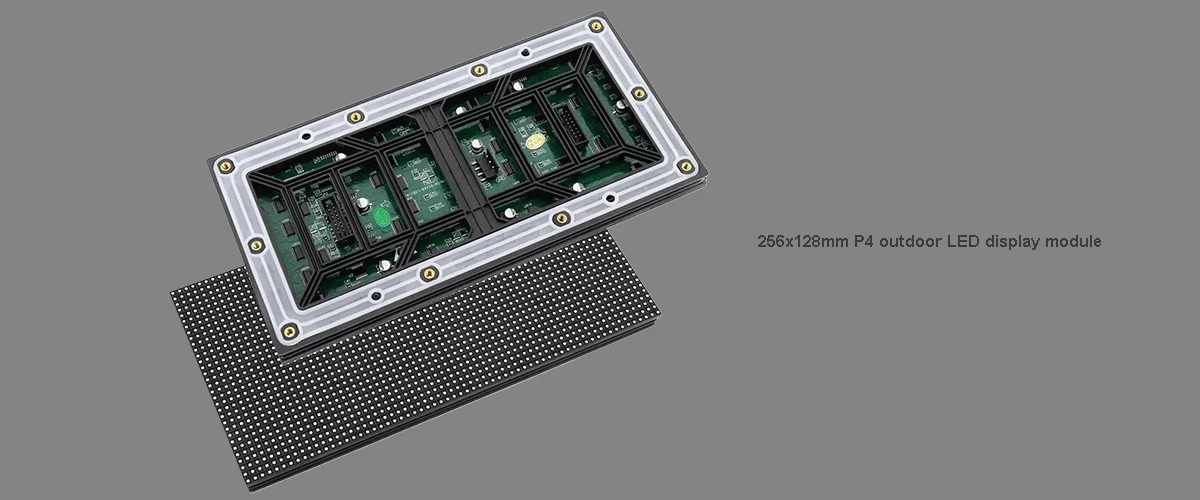

P4mm SMD1921 256*128 64*32 1/8 1920 / 3840 6000
P8mm SMD3535 256*128 32*16 1/4 1920 / 3840 6000
