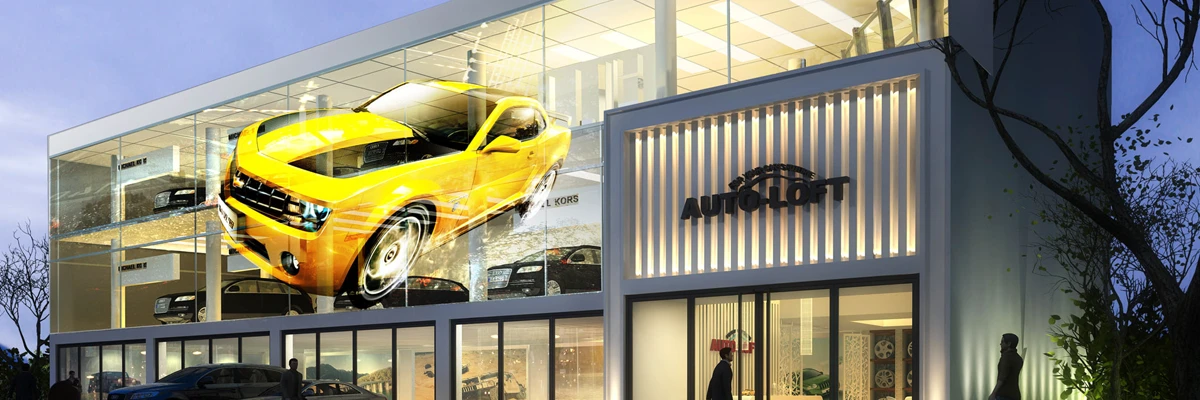

CH96O03- Outdoor naked-eyes 3D LED screen

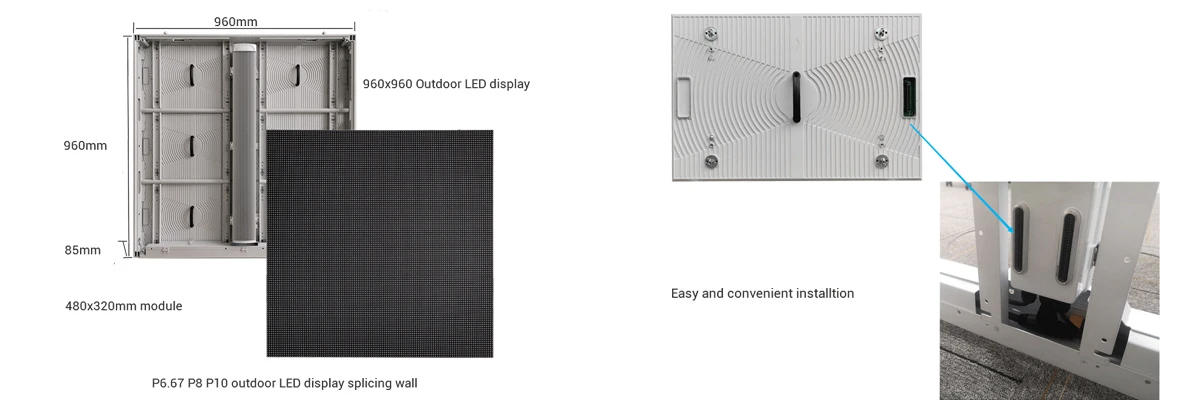

The 960x960mm outdoor 3D LED display work with 480x320mm Die-cast aluminum LED display modules,easy to install and transport.

This cabinet size is 960x960mm,can work with 480x320mm led display modules.the outdoor naked-esys 3D LED display cabinet easy to transport&install,save the project charge&cost.very suitable for use as outdoor large screen billboards.

outdoor 3d screen

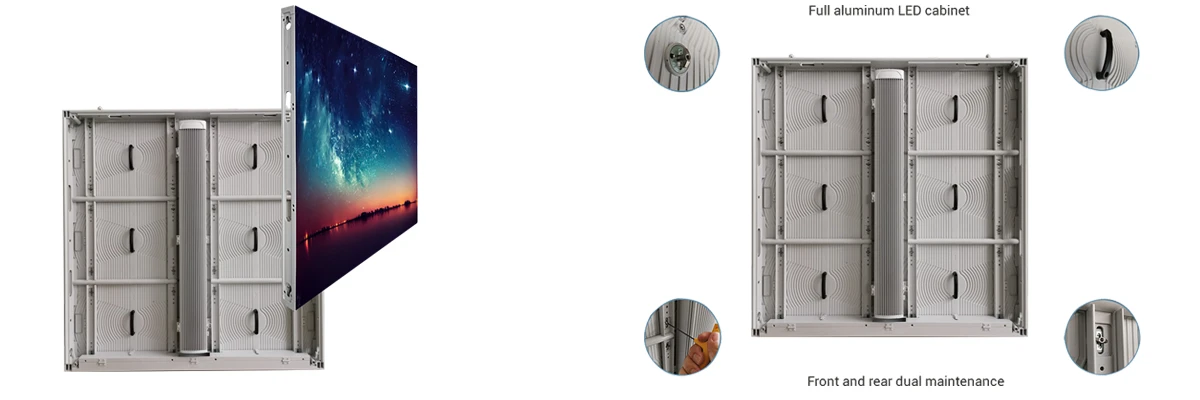

Front and Rear Maintenance Design

Designed with dual side maintenance,the Led display panels can be assembled and disassembled easily&quickly,save your maintenance time and cost.

outdoor 3d led display

High Quality Led Display Modules

Die-cast aluminum LED modules are resistant to high temperatures and corrosion. our products have passed the strict fire protection class 5VB certification. This means you can use our displays without worrying about the risk of fire.

3d advertising video wall

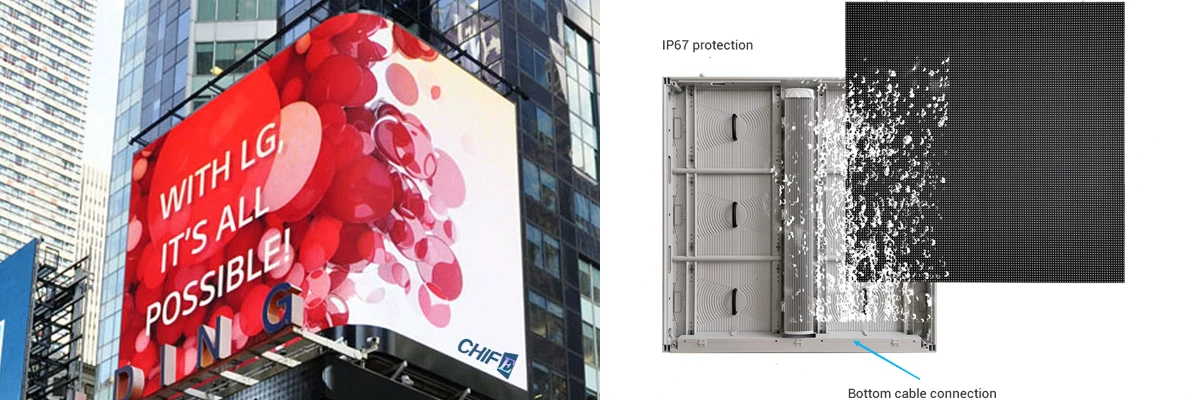

IP67 Waterproof

Our outdoor led display video wall support double side waterproof.The IP67 waterproof rating certification to ensure that even in bad weather, the display effect remains clear and not damaged.

led outdoor 3d display

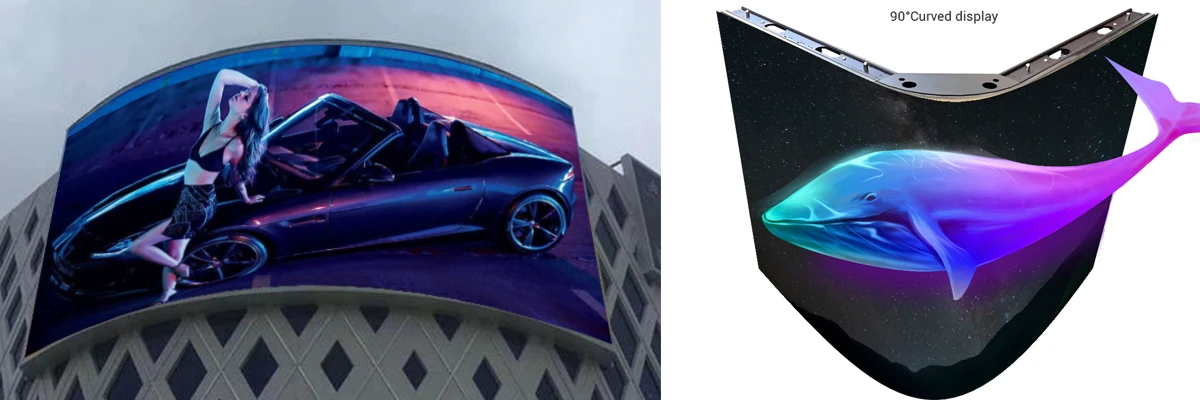

Support 90°Curved Display

The led screen cabinet support to achieve naked 3D advertising display if install the 90°curved cabinet connector. That will be a amazing visual experience.

naked eyes 3d display

Specification

Pixel Information 6.67mm 8mm 10mm
lamp SMD2727 SMD3535
Driving mode (scan) 1/6Scanning 1/4Scanning 1/2Scanning
Brightness(nit) 5300cd/㎡ 4700cd/㎡ 5800cd/㎡
Color Grayscale(Bit) 16Bit
Panel weight/kg 1.6kg
Cabinet size (mm) 960x960
Weight (kg/㎡) 25
Humidity 10%-65%RH 10%-95%RH
Quantity of panel 6
Hub connecting Custom Hub
Best viewing angle Horizontal >170 Vertical>120
Best viewing distance 4-60M 5-60M 6-60M
Working temperature -10~60 -20-60℃ -20-60℃
Panel power supply 5V80A
Screen power supply AC50·60HZ,220V±15%/110V±15%
IP rating The back IP67,The front IP67
AC input Power Maximum Value(W/㎡) 660W/㎡ 550W/㎡ 650W/㎡
AC input Power Typical Value(W/㎡) 220W/㎡ 180W/㎡ 215W/㎡
Driving device Constant current drive
Refresh frequency(Hz) 1920~3840HZ
Lifetime Typical Value(hrs) 100000Hours
Communication distance <100M
