Designed specifically for modern retail stores, this product integrates cutting-edge magnetic technology with high-definition LED display technology, creating a brand-new display platform that combines visual appeal, interactive experience, and data analytics. Through the seamless integration of magnetic brackets and LED screens, it realizes the direct connection between products and digital information, providing shoppers with an unprecedented shopping experience.
Core Features:
- Magnetic Bracket System:
- Core structure: The core of the magnetic base bracket lies in its strong magnetic attraction, which is usually achieved through a built-in strong magnet. The surface of the magnet is covered with a cloth protective layer to prevent scratching the LED display and increase the stability of adsorption.
Base design: The base is usually designed to be heavier to increase the overall stability. The base can also be easily removed or moved.
Easy installation:This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric. Equipped with a quick lock design, the installation and assembly are more convenient.
- Core structure: The core of the magnetic base bracket lies in its strong magnetic attraction, which is usually achieved through a built-in strong magnet. The surface of the magnet is covered with a cloth protective layer to prevent scratching the LED display and increase the stability of adsorption.
- HD Interactive LED Display:
- Multiple Pixel Pitch Options: Offering P1.2, P1.5, P1.9, and other small pixel pitch options to meet different viewing distance requirements, ensuring crisp details and vibrant colors.

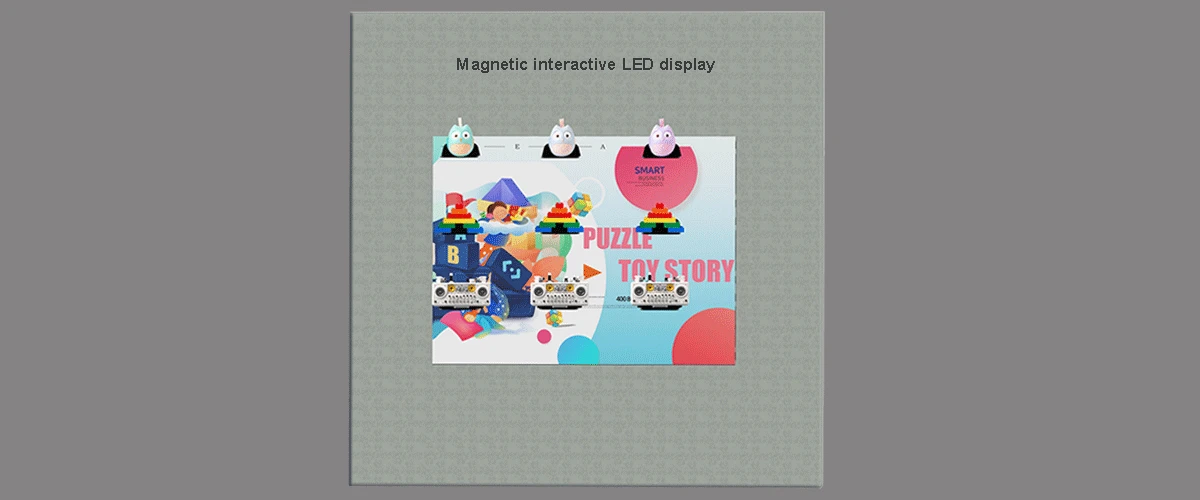

- Dynamic Display: Supports high-definition video playback, scrolling text and images, and dynamic effects. When shoppers pick up a product, the screen instantly displays detailed information (sizes, colors, prices, materials, etc.), enhancing the interactive shopping experience.
- Smart Sensing: Integrated sensor technology detects when a shopper picks up a product, automatically triggering a change in display content, boosting customer engagement.
- Data Analytics Functionality:
- Traffic Statistics: Built-in smart analytics system counts and analyzes passing, stopping, and interactive shoppers, providing data support for store operations.
- Product Attention Analysis: Records the number of times and duration each product is picked up, helping merchants understand product popularity and optimize inventory management.
- Customer Behavior Analysis: Analyzes customer interests and preferences, providing a basis for precise marketing and personalized recommendations.
- Easy Installation and Maintenance:
- Modular Design: Both the LED screen and magnetic brackets feature modular designs, facilitating quick and easy assembly and disassembly, reducing maintenance costs.
Easy Assembly and Maintenance: This LED display adopts a full front maintenance design, and the LED module, power supply, and receiving card can be easily maintained from the front.
- Remote Control: Enables remote control and management of display content via smartphones, tablets, or computers, ensuring flexibility and efficiency.
Application Scenarios:
- High-end shoe stores, fashion boutiques
- Jewelry display areas
- Electronics experience stores
- Interactive exhibition areas in museums and galleries
Indoor LED display screen-640x480mm cabinet specifications
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | 1/32 | 1/26 | 1/43 | 1/40 | 1/32 |
| Cabinet Size (mm) | 640x480 | 640x480 | 640x480 | 640x480 | 640x480 |
| Cabinet Weight (KG) | 11 | 11 | 11 | 11 | 11 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| MTBF(hours) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
The Smart Magnetic Interactive LED Display revolutionizes the retail industry with its unique magnetic design, high-definition display, and powerful data analytics capabilities. It not only enhances customers' shopping experience but also provides valuable data insights for merchants, facilitating informed business decisions and operational optimizations.
