Is it because traditional transparent screens block the sunlight coming into the shop walls that you have to use lighting all day long? Are you worried that traditional transparent screens installed on shop walls hinder buyers from viewing the products inside the store? Are you concerned about the cumbersome maintenance and installation steps of traditional transparent screens and how to promote your products? Now,All your current concerns will no longer exist because our LED transparent display screens will perfectly solve these problems.

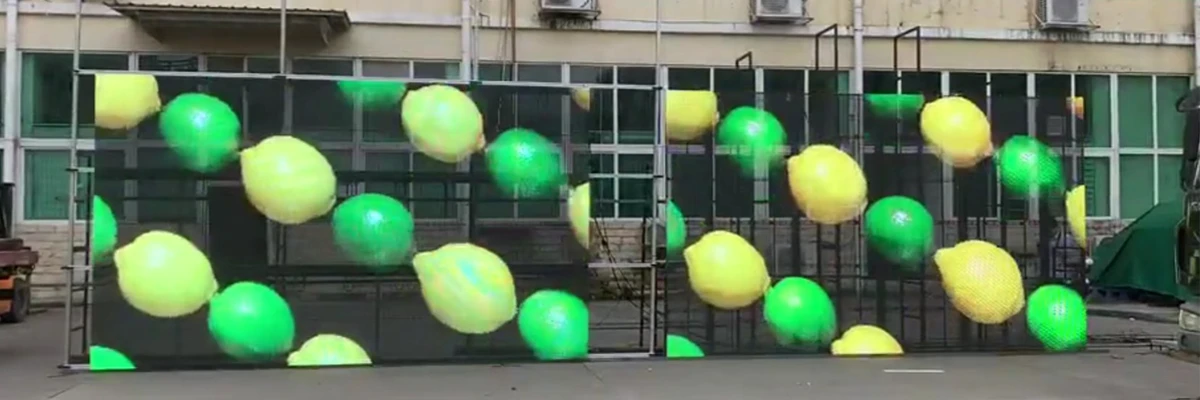

High transparency of our led mesh display screen
The transparency arrive to 66%. The display screen is hardly noticeable, allowing sunlight to pass through from outdoors, and pedestrians can intuitively see the products inside the store. Coupled with the advertising content on the screen, it maximizes the promotion of your products.

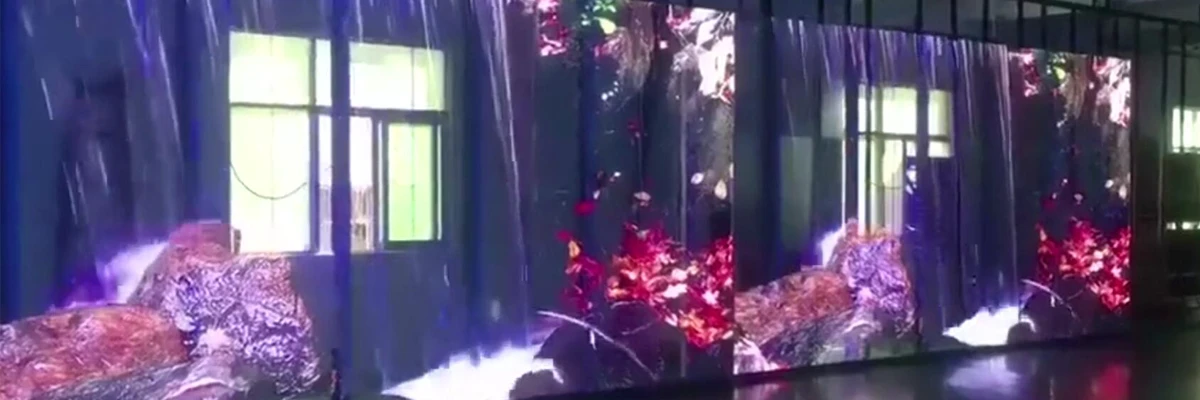

Super high brightness, allowing clear visibility of display content even in direct sunlight
With up to 6000 nits of brightness, our mesh LED displays remain visible even in bright daylight, surpassing traditional projectors and LCDs. These modular digital LED displays are perfect for advertising and media on architectural facades. We assure you that our transparent LED display solutions are the most cost-effective method to achieve top-quality luminance, ensuring you grab attention.

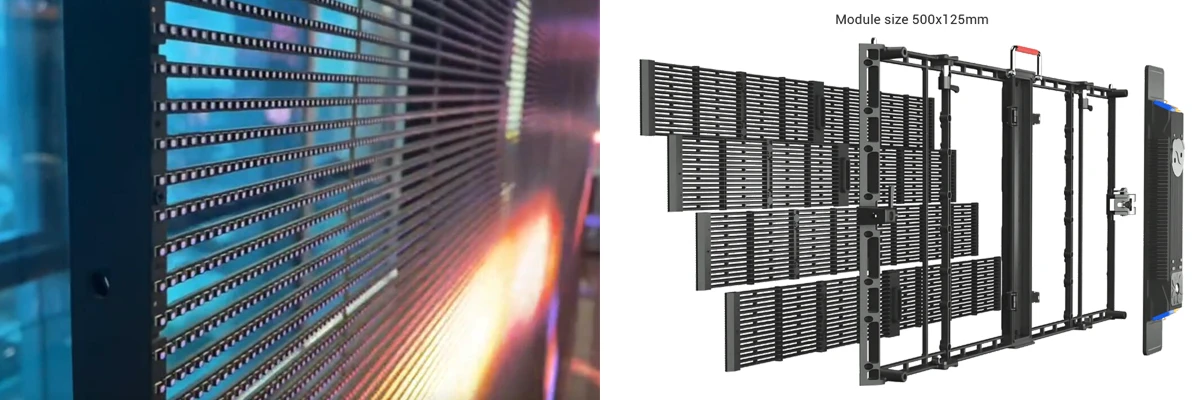

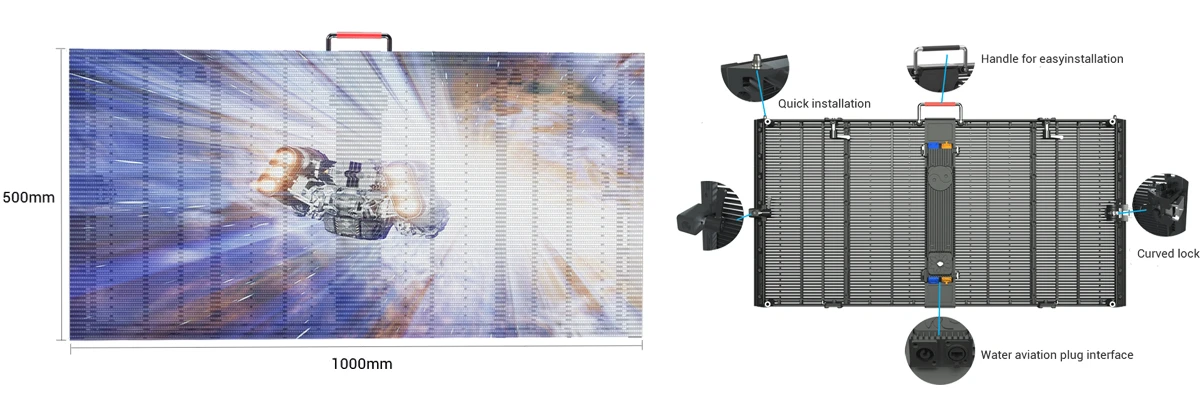

Easy setup&installation&maintenance
our modular panels snap together easily without the need of complicated tools. Power supplies are built into the supporting frame, which make it easier and faster to install, and displays can be hung or mounted. The LED strips have a long life expectancy and can be replaced quickly and easily as required without the need to replace the entire module. With repairs done in minutes and at a very low-cost, the transparent led display will last for years.

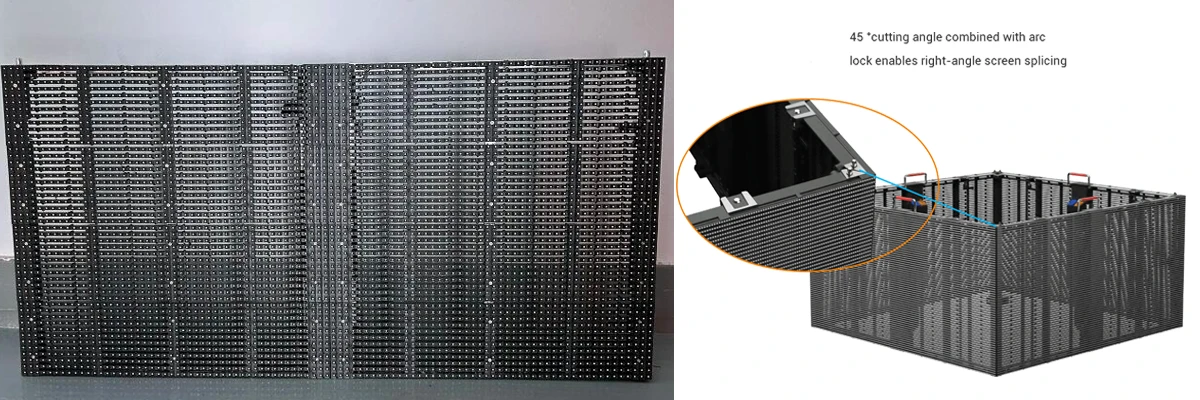

IP 66 and 45°cutting angle
The waterproof rating reaches IP66, ensuring that even in adverse weather conditions, the display remains clear and undamaged. The edges of each module are designed to be 45 degrees, it is easier to make right-angled connection and realize glasses-free 3D LED display.
Specification
Specification | Outdoor | Indoor | |||
Pixel Pitch(mm) | 2.8*5.6 | 3.9*7.8 | 5.2*10.4 | 2.8*5.6 | 3.9*7.8 |
LED module | SMD1921 | SMD2727 | SMD1921 | ||
Module size(mm) | 500*125*12 | ||||
Module resolution | 176*22 | 128*16 | 96*24 | 176*22 | 128*16 |
Cabinet size(mm) | 1000*500*65 | ||||
Cabinet resolution | 352*88 | 256*128 | 192*96 | 352*88 | 256*128 |
Cabinet weight (Kg/pcs) |
8.1 | ||||
Brightness (cd/m²) |
4000/7000 | 5000/7500 | 6000/8000 | 4000/7000 | 4500/7500 |
Grayscale(Bit) | 14-16Bit | ||||
Cabinet material | Aluminlum alloy | ||||
Max Power Consumption (W/m²) |
800 | ||||
Avg Power Consumption (W/m²) |
230 | ||||
Perspective | 160°/160° | ||||
Refresh rate | 3840 | ||||
IP rating | IP66 | ||||
Operating temperature | -40°℃~60℃ | ||||
Humidity-operating | 10%~90% | ||||
Life Span | ≥100,000 H |
