LED smart pallet

Smart LED pallet equipped with built-in smart chips, enable remote sales data monitoring, video ad updates, and store inventory management, making them a preferred choice for large shopping malls, unmanned stores, and science and technology exhibition halls.

Our LED smart pallet is an innovative LED solution, the smart pallet combines display and storage functions, allowing for synchronized product showcase, advertising, and sales tracking. It's a leap forward in the intelligent application of LED products.

LED-smart-pallet-02

CMS function: Remote content management and updates for intelligent LED advertising displays.

LED-smart-pallet-03

Track sales progress: Effectively manage and guide you towardsexecuting the most impactful sales plans.

LED-smart-pallet-04

HD LED advertising display: High-resolution screens with 3D oontent support, ensuring an attractiveand engaging visual experience

LED-smart-pallet-05

Built-in radar sensor: The radar sensing automatically detects and counts the number of passing customers, providing accurate data for product and customer traffic analysis, enabling the development of more effective sales strategies.

LED-smart-pallet-08

Removable showcase: The cargos can be stored within the smart LED pallet, enabling it to operate as a self-contained merchondise store for exhibition and retail.

LED-smart-pallet-07

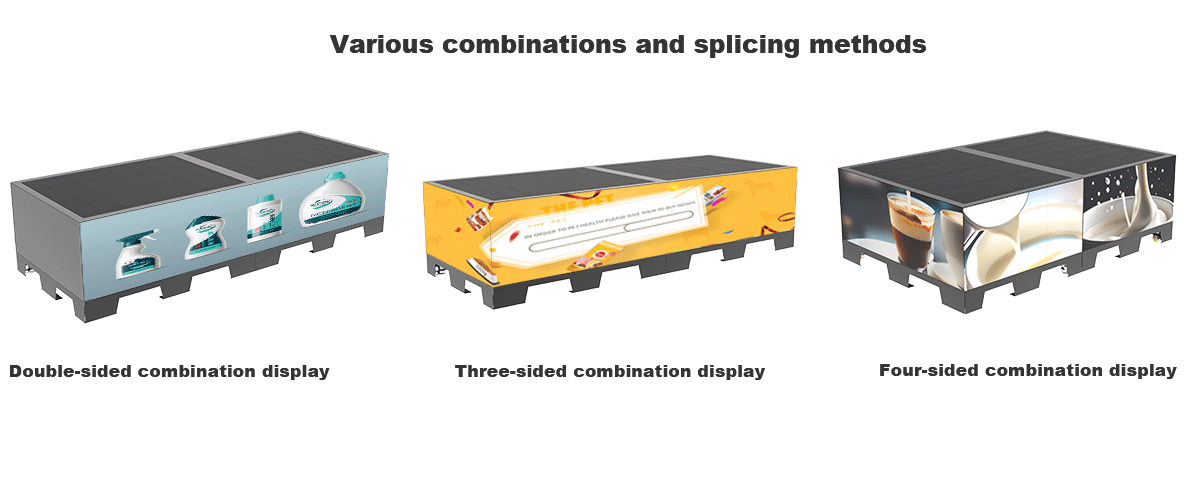

Seamless splicing, multi-screen linkage:Our singlesided or doublesided smart LED pallet can be seamlessly combined to create larger three-sided or four-sided LED display pallets, effectively fulfilling your exhibition and promotional requirements.

LED-smart-pallet-06

Specifications

Pixel pitch P1.53 P1.86 P2 P2.5
Pixel density 425000 288906 250000 160000
Module size 320x160mm
LED encapsulation SMD1212 SMD1515 SMD2020 SMD2020
Module resolution(pixels) 208x104 172x86 160x80 128x64
Scanning mode 1/52 1/43 1/40 1:32
Maintenance Front
White balance brightness 400-600cd/m²
Color temperature 6500K(adjustable)
Refresh rate 3840Hz
frame rate 60-120Hz
Viewing angle 120-140°(V/H)
Brightness uniformity ≥98.5%
Grayscale level 14-16bits
Contrast ratio 5000:1
Working voltage (input) 110-240V,50-60Hz
Max./Avg.power consumption 500W/m²and   165-260W/m²
Working /Storage
temperature&humidity(RH)
-10°C+60℃&35-75%
IP ratings 40
Signal output HDMI/DVI/DP/WIFI
Certification CE/RoHs/FCC/ETL
