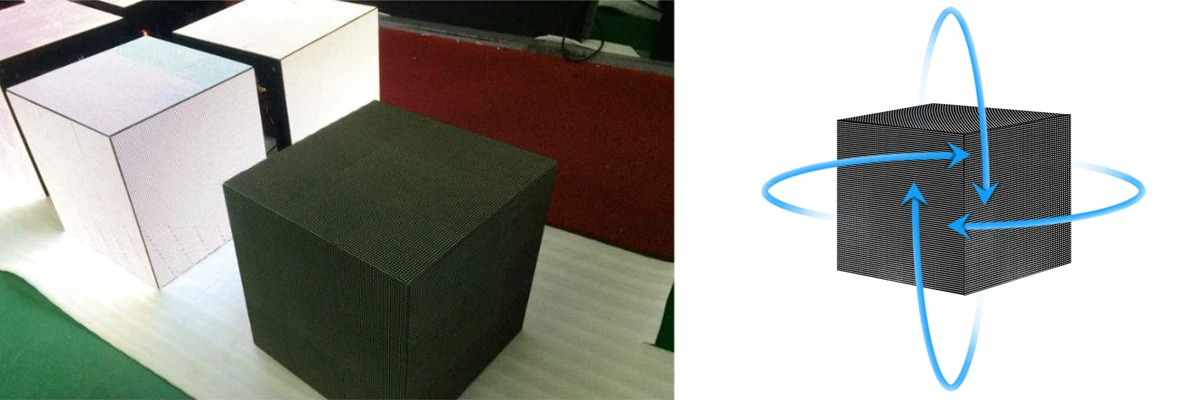

This LED magic cube display can be mounted horizontally on walls and can be customized to display on 3, 4, or 5 sides. It is highly suitable for use as an advertising screen in supermarkets, stores, restaurants, and so on.
Unique Design: Unlike traditional flat displays, the LED cube display stands out with its three-dimensional design, offering a more visually striking effect.
Versatile Display Effects: Each face of the cube can independently display content or be synchronized to create various display effects, such as 3D animations and video playback.
High Interactivity: Through programming, the LED cube display can achieve human-computer interaction, enhancing audience engagement.
High Brightness and Contrast: Equipped with high-brightness LED lights, it ensures clear and vivid images in all environments.
Highly Customizable: It can be customized in terms of size, shape, color, and more to meet diverse application needs.
Applications of the LED magic cube display
Commercial Advertising: The LED cube display can be placed in public areas such as shopping malls and pedestrian streets to play video ads and attract consumer attention.
Stage Performances: It can serve as a stage backdrop, creating stunning visual effects and enhancing the performance.
Exhibitions: The LED cube display can be used to showcase products and brand images, drawing the attention of visitors.
Architectural Decoration: It can be used as a building facade decoration, enhancing the visual appeal of the structure.
Theme Parks: The LED cube display can be used in interactive games at theme parks, adding to the fun for visitors.
Parameter table
Model | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor |
Pixel Pitch(mm) | 2.5 | 3 | 4 | 2.5 | 3 | 3.91 |
Pixel Matrix Per Sq.m | 160,000 | 111,111 | 62,500 | 160000 | 111111 | 65410 |
Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD1415 | SMD1415 | SMD1921 |
Brightness (nits) | 800 | 800 | 800 | 5000 | 5000 | 3800 |
Scan | 1/32 | 1/32 | 1/16 | 1/16 | 1/16 | 1/16 |
Module Dimension | 160x160 | 192x192 | 128x128x128 | 160x160mm | 192x192mm | 250x250mm |
Cabinet Dimension | 320x320x320 | 384x384x384 | 512x512x512 | 320x320x320 | 384x384x384 | 500x500x500 |
Cabinet Weight | 11KG | 14KG | 23KG | 15kg | 19kg | 34kg |
Power Con. (Max / Avg) | 710/ 230W/㎡ | 690/ 210W/㎡ | 500/ 180W/㎡ | 900/ 180W/㎡ | 900/ 180 W/㎡ | 900/ 180 W/㎡ |
IP Rate | IP31 | IP31 | IP31 | IP65 | IP65 | IP65 |
Service Access | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
Refresh Rate (HZ) | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
Grey Scale (bit) | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
Viewing Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
Input Voltage (AC) | 110V/240V | 110V/240V | 110V/240V | 110V/240V | 110V/240V | 110V/240V |
