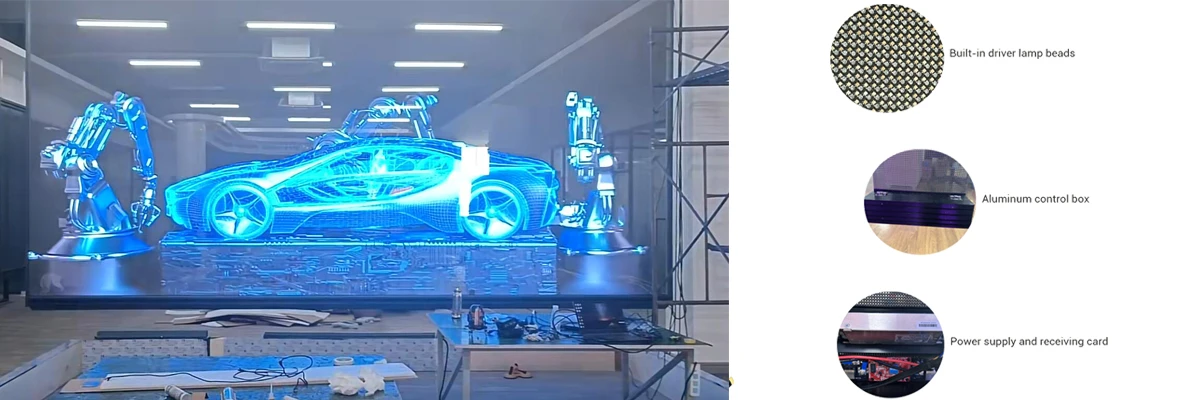

LED holographic transparent display screens, also known as holographic invisible screens or holographic film screens, feature a grid-like design that utilizes specially designed transparent LED display elements. This allows light to pass through the screen without significantly obstructing the background. Beyond their lightweight, transparent nature, and easy installation, LED holographic screens own superior image quality,HD visual effects and exceptional brightness,and so on.

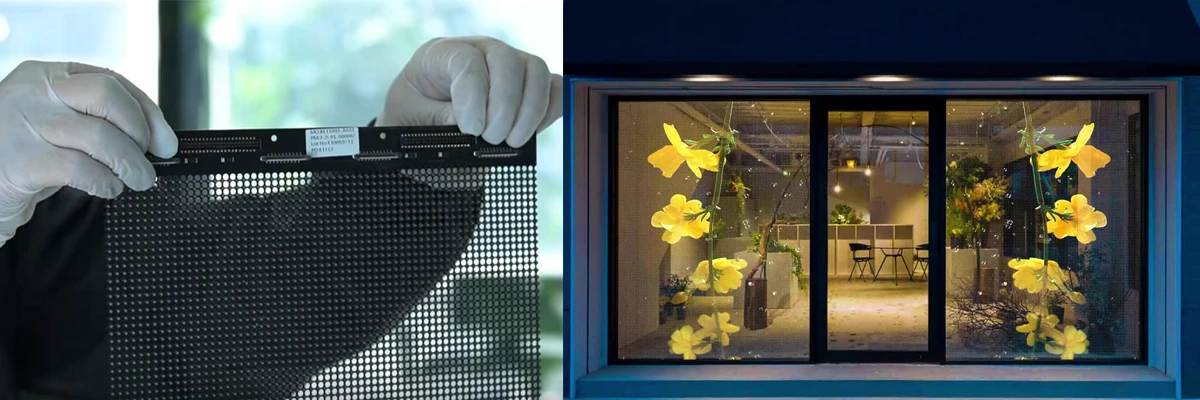

High transparency for an enhanced visual experience

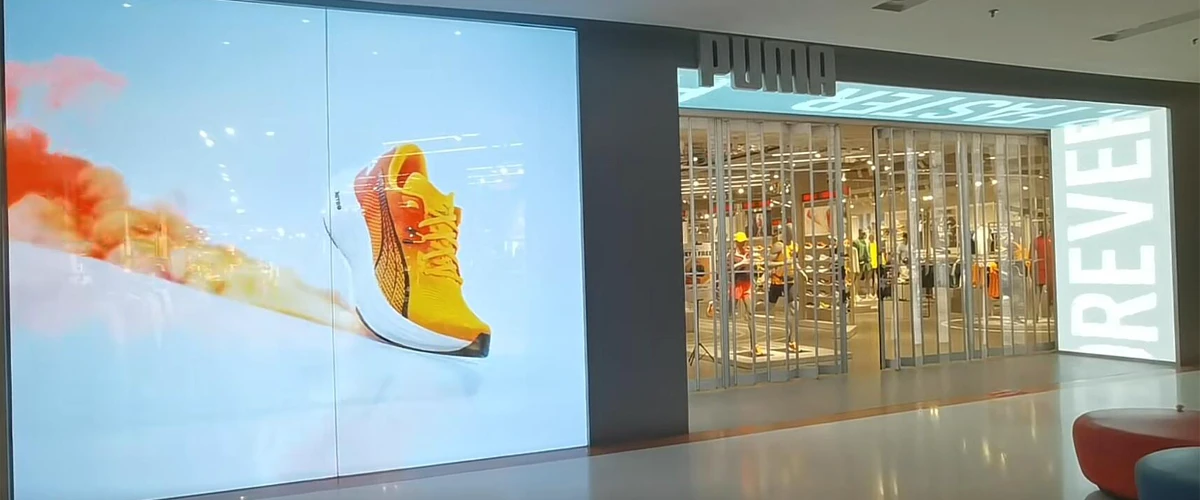

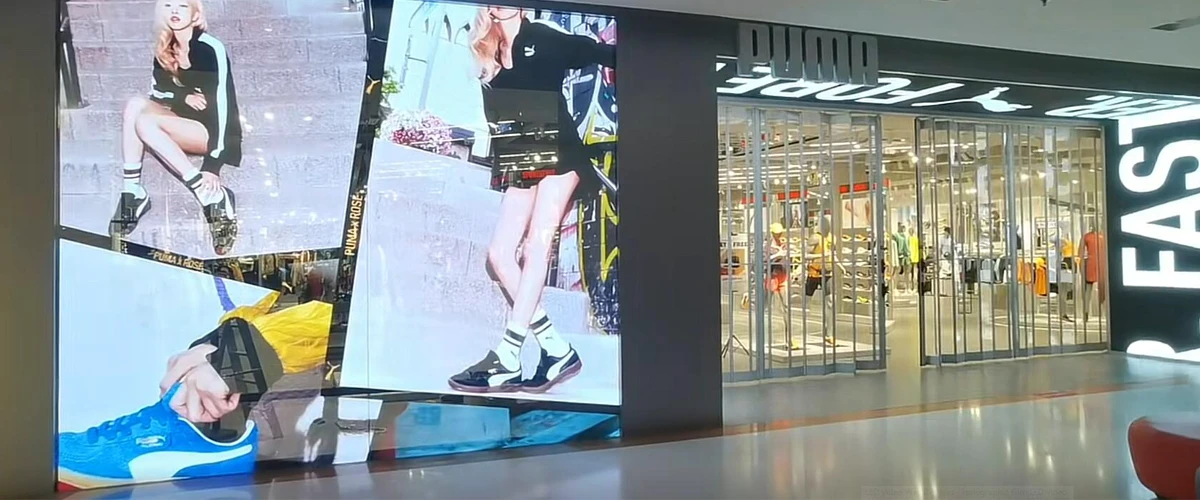

The LED holographic screen's frameless, bracket-free design, and high transparency create a unique and engaging viewing experience while also promoting energy efficiency. Customers can appreciate product advertisements without sacrificing natural lighting, and they can easily view the actual products being advertised.

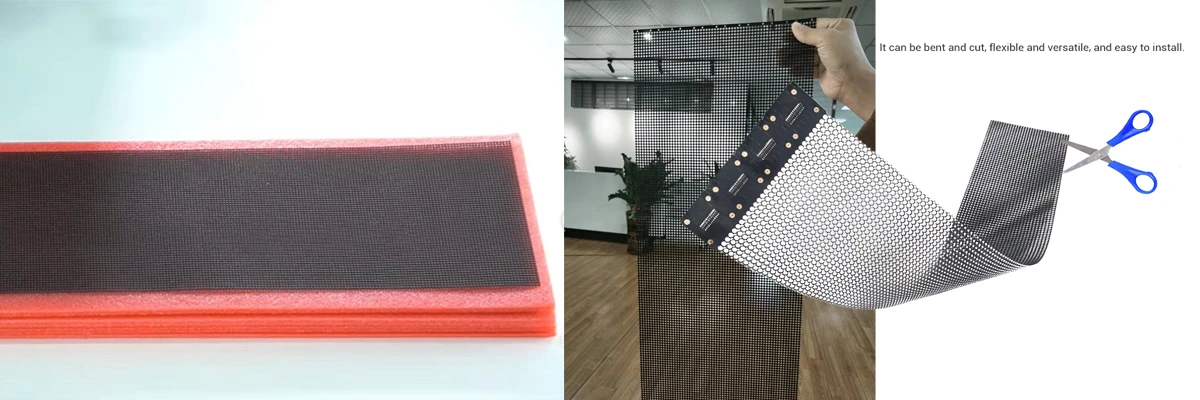

Flexible installation with arbitrary cutting and splicing
LED holographic transparent screen stands out for its exceptional flexibility, enabling arbitrary cutting, splicing, and adaptation to curved surfaces. These features make it a highly versatile solution for diverse applications, including retail stores, clothing stores, exhibition halls, and more.
Ultra-thin Design for Seamless Integration
The holographic display's thickness only 2mm, seamless integration capabilities, and non-invasive installation make it an ideal choice for applications where aesthetics and structural integrity are paramount.
Lightweight and Easy Installation
LED holographic transparent display is not only lightweight and portable but also remarkably easy to install, making it a cost-effective solution for various applications and environments.
Specification
| Product number | P2 | P2.5 | P3.125 | P3.91 | P6.25 | P8 | P10 | P16 | P20 |
| Pixel pitch | W2-H2mm | W2.5-H2.5mm | W3.125-H3.125mm | W3.91-H3.91mm | W6.25-H6.25mm | W8-H8mm | W10-H10mm | W16-H16mm | W20-H20mm |
| Pixel density(Pixels/㎡) | 250000 | 160000 | 102400 | 65536 | 25600 | 15625 | 10000 | 3906 | 2500 |
| Display thickness | 1-3mm | ||||||||
| lamp beads | SMD1010(Lamp and driver in one) | SMD1515(Lamp and driver in one) | SMD2121(Lamp and driver in one) | ||||||
| Module size | 250mm*1200mm | ||||||||
| Electrical properties(w/m²） | 240-800 | 200-600 | 240-800 | 200-800 | 200-600 | ||||
| Screen weight（kg/m²） | <3 | ||||||||
| Power supply | Yuan Chi | ||||||||
| Permeability | >50% | >65% | >70% | >80% | >90% | >92% | >93% | >95% | |
| IP rating | ≥IP45 | ||||||||
| Lifetime (Hours) | >100000 | ||||||||
| Voltage | 220V±10%,AC50HZ | ||||||||
| Screen brightness | 800-2000cd/m² | 1500-5000cd/m² | 1500-4500cd/m² | 1500-3500cd/m² | |||||
| Visible distance | 2m～40m | 2.5m～50m | 4m～150m | 8m～250m | 10m~250m | 10m~250m | 16m~250m | 20m～250m | |
| Perspective | 140 | ||||||||
| Grayscale | 8-16bit | ||||||||
| White point color temperature | 5500K-15000K | ||||||||
| Drive mode | static | ||||||||
| Decay rate | < 0.05%-2 years | ||||||||
| Refresh frequency | 1920HZ/3840HZ | ||||||||
| Frame change frequency | >60HZ | ||||||||
| Trouble-free working time (Hours) | >10000 | ||||||||
| Lamp bead defective pixel rate | <1/10000 | ||||||||
| Usage environment | -10～+65℃/10～90%RH | ||||||||
| Storage environment | -40～+85°℃/10～909%RH | ||||||||
| Installation method | Adhesive/Hoisting/fixed installation | ||||||||
