CHM02-Indoor LED display module

Indoor LED display modules have a finer pixel pitch, resulting in a clearer display.

Indoor LED display modules boast a finer pixel pitch, resulting in a sharper and more detailed image. compared to traditional LCD modules.they also offer superior brightness, viewing angles, and color saturation, making them increasingly popular in conference centers, schools, control rooms, exhibition halls, airports, and high-speed rail stations.

Indoor-LED-display-module-02

High definition

The indoor LED modules have more finer pixel pitch,so they can provide more higher display resolution.and now the finest pitch it is 0.78mm,it can achieve a display effect comparable to 4K.

Indoor-LED-display-module-03

Widely viewing angle

The unique self-emitting characteristics of LEDs enable LED displays to achieve an ultra-wide viewing angle of up to ±160°, enhancing the overall viewing experience for customers.

Indoor-LED-display-module-04

Custom size and pixel pitch

We customize LED display modules according to your specific pixel pitch and size requirements, ensuring a perfect fit for any project, regardless of scale.

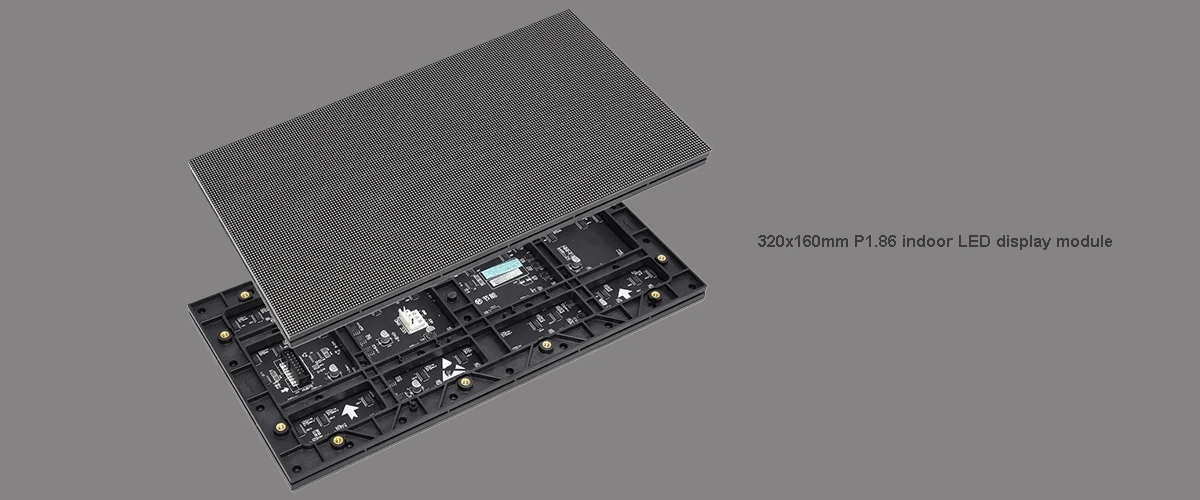

320x160mm series indoor LED module

Pixel Pitch LED Type Module Size(MM) Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P1.25mm SMD1010 320*160 256*128 1/64 3840 600
P1.53mm SMD1010 320*160 208*104 1/32 3840 600
P1.86mm SMD1515 320*160 172*86 1/43 3840 600
P2mm SMD1515 320*160 160*80 1/40 3840 700
P2.5mm SMD2020 320*160 128*64 1/32 1920 / 3840 800
P3.076mm SMD2020 320*160 104*52 1/26 1920 / 3840 800
P4mm SMD2020 320*160 80*40 1/20 1920 / 3840 700
P5mm SMD2020 320*160 64*32 1/16 1920 / 3840 700

Other series indoor LED display module

Pixel Pitch LED Type Module Size(MM) Module Resolution Driving Mode Refresh Rate(Hz) Brightness(Nits)
P2mm SMD1515 256*128 128*64 1/32 1920 / 3840 800
P2.5mm SMD2020 160*160 64*64 1/32 1920 / 3840 800

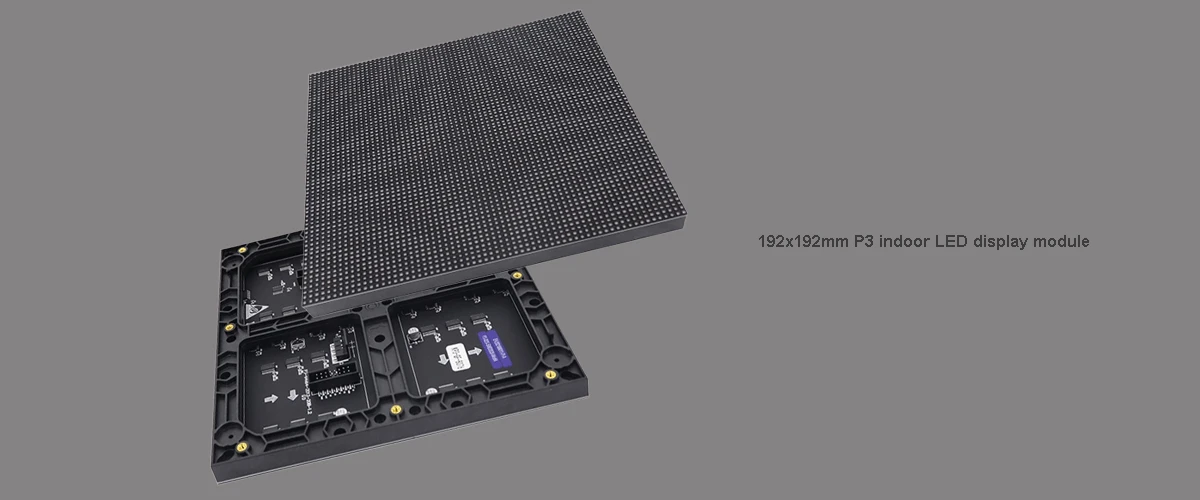

P3mm SMD2020 192*192 64*64 1/32 1920 / 3840 700

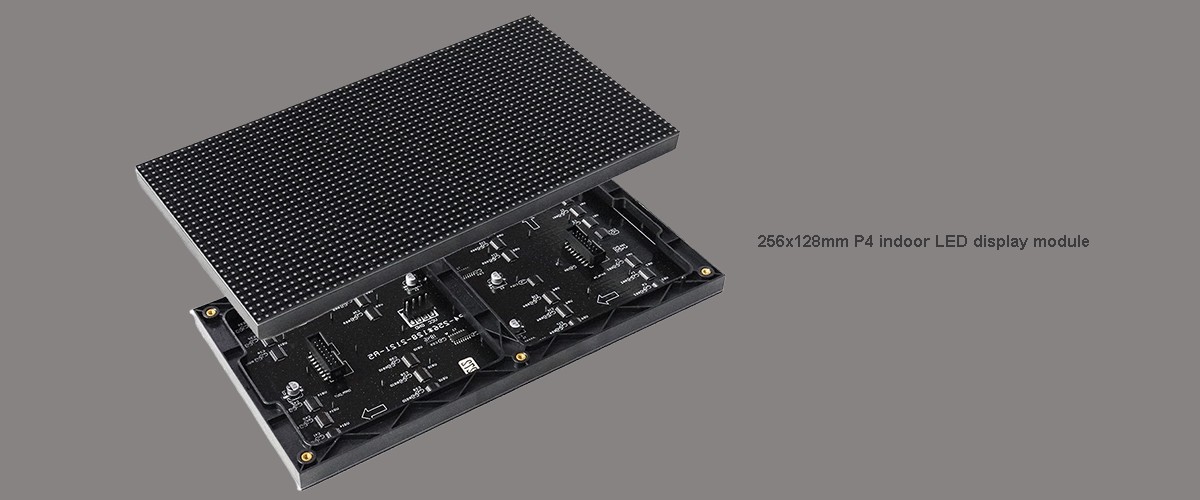

P4mm SMD2020 256*128 64*32 1/16 1920 / 3840 800
P4mm SMD2020 256*256 64*64 1/32 1920 / 3840 600
