Product Overview
This magnetic interaction LED display screen is specifically designed for modern retail, exhibition displays, and commercial spaces, incorporating advanced magnetic technology with high-definition LED display technology to provide an unprecedented interactive shopping experience for consumers. Through the innovative hook-type magnetic bracket design, product information can be instantly and dynamically displayed on the LED screen, enhancing display effects while enabling data-driven analysis of customer behavior to assist merchants in precise marketing.
Core Features

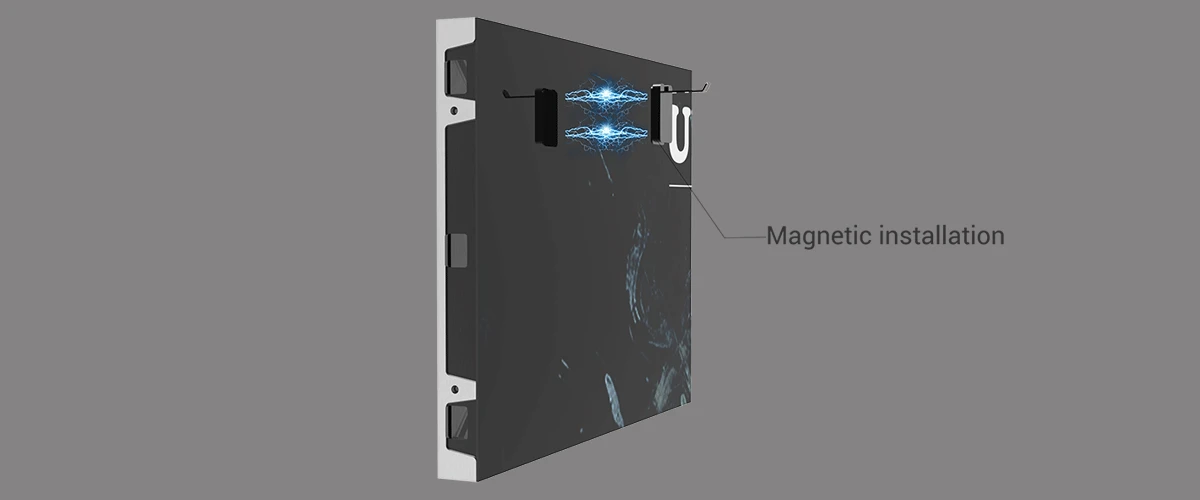

Magnetic Hook Bracket: Utilizes high-strength magnetic materials to ensure stable adhesion to the LED display surface, eliminating the need for drilling or screwing, thereby protecting the screen from physical damage. The hook design is flexible, supporting quick installation and removal, adapting to various shapes and weights of displayed products.
Perfect Structure Design:This cabinet adopts high-standard industry-leading design, and the die-cast aluminum cabinet bottom shell is high-end and atmospheric. Equipped with a quick lock design, the installation and assembly are more convenient.
Smart Sensing Device: Equipped with high-precision sensing elements, the bracket accurately recognizes when a shopper picks up a product, triggering the LED display to showcase detailed information such as size, color, price, material introduction, etc., enabling instant interaction.
Data Analysis Function: The system incorporates an intelligent statistics module that automatically records and analyzes data such as the number of times products are picked up for viewing and the duration of each interaction, providing valuable customer behavior analysis reports to assist merchants in optimizing product displays, inventory management, and marketing strategies.
High-Definition Display: The LED display employs small-pitch technology, delivering crisp and clear image quality that supports multiple resolutions, ensuring accurate and vivid display of product information to captivate shoppers' attention.
Diverse Pitch Options: Offers a selection of display screens with different pixel pitches (e.g., P1.2, P1.5, P1.8), catering to varying viewing distances and clarity requirements, ensuring optimal performance for both close-up detailed displays and long-distance panoramic presentations.
Easy Assembly and Maintenance: This LED display adopts a full front maintenance design, and the LED module, power supply, and receiving card can be easily maintained from the front.
Indoor LED display screen-640x480mm cabinet specifications
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | 1/32 | 1/26 | 1/43 | 1/40 | 1/32 |
| Cabinet Size (mm) | 640x480 | 640x480 | 640x480 | 640x480 | 640x480 |
| Cabinet Weight (KG) | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| MTBF(hours) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
Application Scenarios
- High-end retail stores for shoe, clothing, jewelry, electronics, and other product displays.
- Interactive experience zones in shopping malls to attract customers and enhance shopping fun.
- Exhibitions and trade shows for new product launches, technology demonstrations, and brand showcases.
- Museums and art galleries for high-definition interactive displays of artworks and artifacts.
Conclusion
The magnetic interaction LED display screen revolutionizes the commercial display industry with its unique magnetic hook design, smart sensing technology, high-definition display, and data analysis capabilities. It not only elevates the shopping experience for customers but also provides merchants with precise market insights, making it an indispensable high-tech product for modern retail and exhibition displays.
