The front service LED display modules could be applied into both indoor and outdoor applications with wall-mounted installation and no space for the back.they will save much time and cost on the subsequent use and maintenance of LED display.
Front service LED module
It's more easier and convenient for indoor&outdoor LED screen with front service solutions. The modules are designed to open from the front. It can be single or double-side led displays too. It can be modular led screens with freestanding and hanging installations. Or the sizes and pixel pitches could be custom.
High Brightness and IP65 Protection
Our outdoor front service led display moudle could be 6500nits high brightness. It provide high quality image and video even under direct sunlight. meanwhile,our LED modules are IP65 rated, ensuring they can wokr flawlessly even in rainy or snowy conditions.
Easy to install
The front service LED display module allows non-service channel behind the LED display screen, It reduces the weight of the load on the building carrying the LED screen and protects the structure of the building,it is more easier to install.

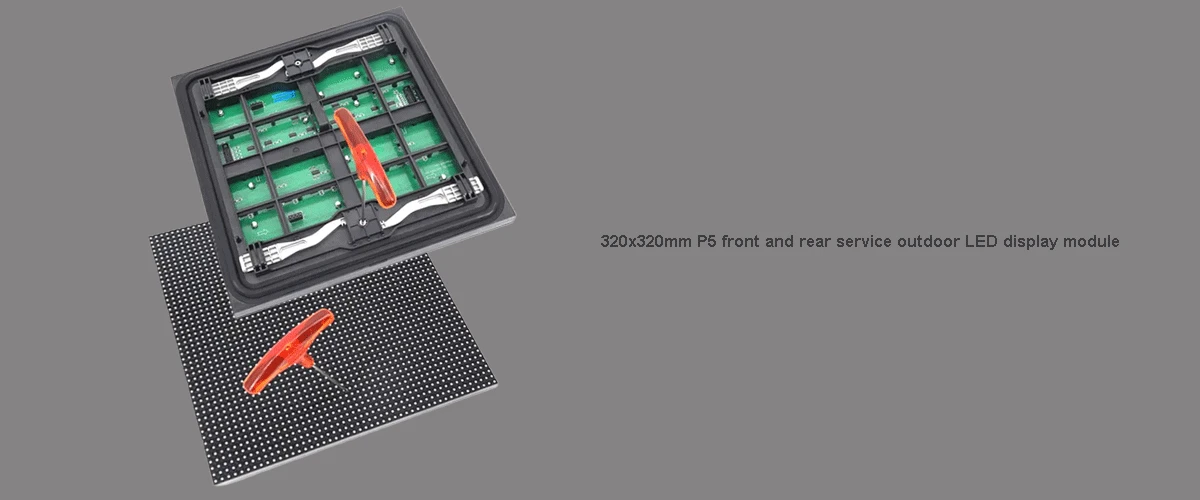

320x320mm front and rear service outdoor LED display module
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P4mm | SMD1921 | 320*320 | 80*80 | 1/10 | 1920 / 3840 | 5500 |
| P5mm | SMD1921 | 320*320 | 64*64 | 1/8 | 1920 / 3840 | 5000 |
| P5.33mm | SMD1921 | 320*320 | 60*60 | 1/8 | 1920 / 3840 | 5000 |
| P6.67mm | SMD2727 | 320*320 | 48*48 | 1/6 | 1920 / 3840 | 5500 |
| P8mm | SMD3535 | 320*320 | 40*40 | 1/5 | 1920 / 3840 | 5000 |
| P10mm | SMD3535 | 320*320 | 32*32 | 1/2 | 1920 / 3840 | 6000 |

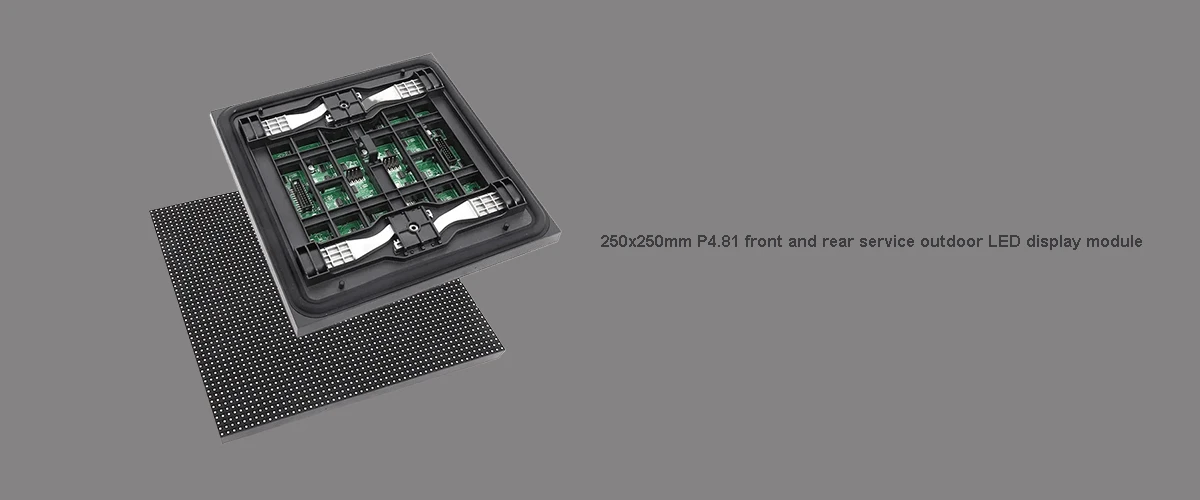

250x250mm front and rear service outdoor LED display module
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P2.976mm | SMD1415 | 250*250 | 84*84 | 1/21 | 1920 / 3840 | 4500 |
| P3.125mm | SMD1415 | 250*250 | 80*80 | 1/10 | 1920 / 3840 | 6500 |
| P3.91mm | SMD1921 | 250*250 | 64*64 | 1/8 | 1920 / 3840 | 6000 |
| P4.81mm | SMD1921 | 250*250 | 52*52 | 1/6 | 1920 / 3840 | 5500 |
| P5.95mm | SMD2727 | 250*250 | 42*42 | 1/7 | 1920 / 3840 | 6000 |
| P6.94mm | SMD2727 | 250*250 | 36*36 | 1/6 | 1920 / 3840 | 6000 |
| P8.33mm | SMD3535 | 250*250 | 30*30 | 1/5 | 1920 / 3840 | 6000 |
| P10.41mm | SMD3535 | 250*250 | 24*24 | 1/2 | 1920 / 3840 | 6000 |

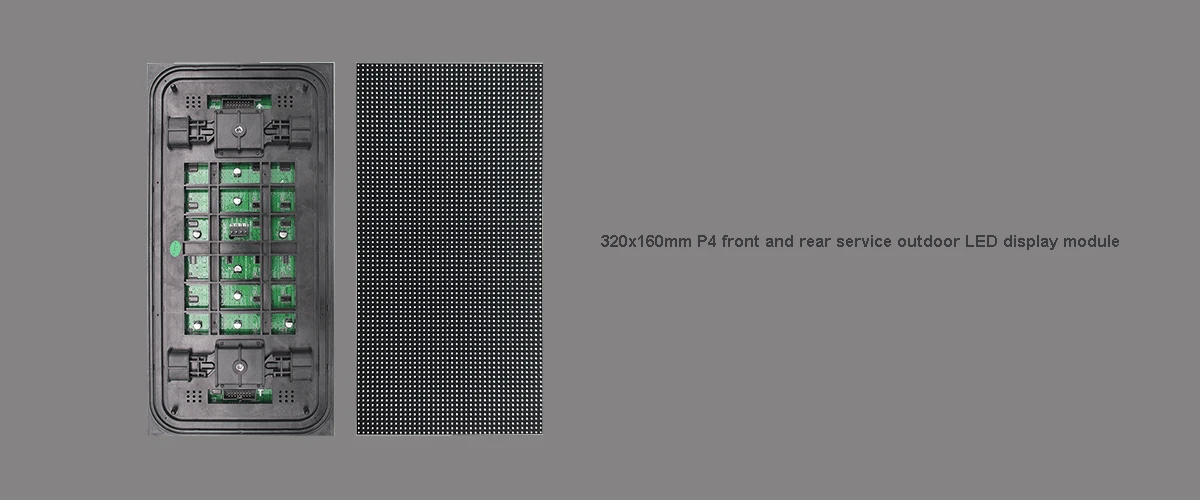

320x160mm front and rear service outdoor LED display module
| Pixel Pitch | LED Type | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
| P3.33mm | SMD1415 | 320*160 | 96*48 | 1/12 | 1920 / 3840 | 5500 |
| P4mm | SMD1921 | 320*160 | 80*40 | 1/10 | 1920 / 3840 | 5500 |
| P5mm | SMD1921 | 320*160 | 64*32 | 1/8 | 1920 / 3840 | 5500 |
| P6.67mm | SMD2727 | 320*160 | 48*24 | 1/6 | 1920 / 3840 | 5500 |
| P8mm | SMD2727 | 320*160 | 40*20 | 1/5 | 1920 / 3840 | 5000 |
| P10mm | SMD2727 | 320*160 | 32*16 | 1/2 | 1920 / 3840 | 6000 |
