CHIFUYI is the leading manufacturer of customized LED display screens. Know more..

MD-0303S Creative rotating LED advertising display

Introducing a new era of visual storytelling. Our LED mechanical display screen is a groundbreaking innovation that combines the precision of mechanical engineering with the brilliance of LED technology.

Our independently researched, developed, and designed indoor three-tier three-sided mechanical LED display boasts numerous structural and design patents. With its unique multi-tiered appearance, elegant curved stereoscopic design, and expansive visual coverage, it captivates audiences with its stunning visual effects. This display is poised to become a focal point in various settings, delivering unparalleled visual enjoyment.

MD-0303S-Rotating-LED-Displays--02Product Features

  • Multi-Tiered Structure: The three-tier design imparts a rich sense of depth, allowing each tier to operate independently or in unison, showcasing multi-dimensional visual effects.
  • Curved Stereoscopic Design: Employing curved soft module technology, it ensures optimal viewing angles from all directions, enhancing the visual experience and broadening the field of view for efficient information delivery.MD-0303S-Rotating-LED-Displays--03
  • Stunning Rotational Movements: Equipped with an intelligent control system, it supports a myriad of fancy rotational and transformational movements. These include individual tier rotation, multi-tier combined rotation, and overall rotation, resulting in dozens of breathtaking 360-degree deformation and rotation effects that are a visual feast.
  • Flexible Display Modes: The standard model comprises nine 45-inch LED displays. These screens can either display nine independent images or automatically combine into three larger screens to simultaneously broadcast three dynamic large images, catering to diverse display needs across various scenarios.
  • Modular Design & Customization: In addition to the standard model, customization options are available. Clients can adjust the display's size, shape, functionality, and visual effects to suit their specific requirements, enabling personalized presentations.MD-0303S-Rotating-LED-Displays--04

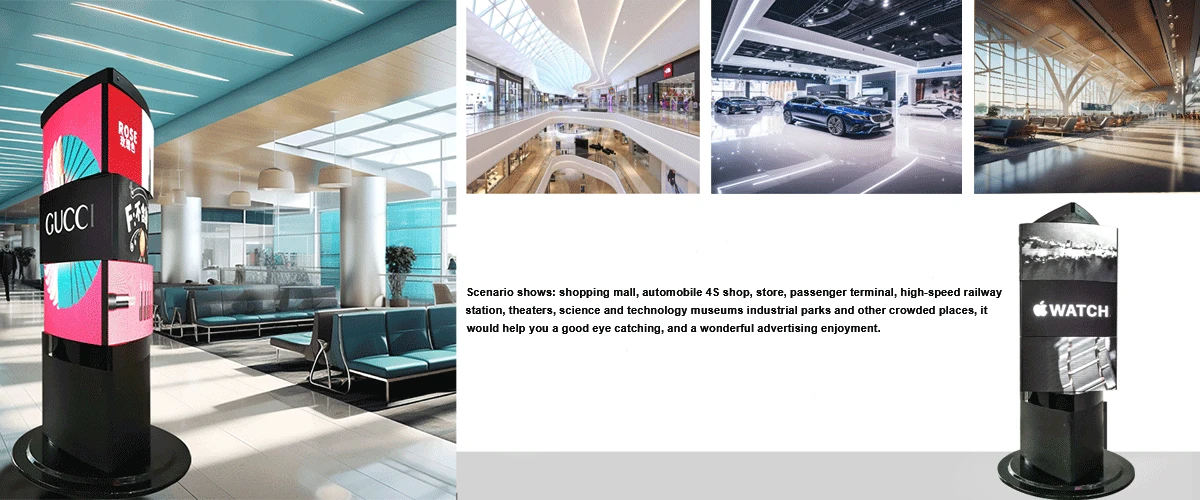

Application Scenarios

  • Shopping Malls: Attracting customers' attention, enhancing brand image, and boosting product sales.
  • Automobile 4S Stores: Showcasing vehicle features, creating a high-tech atmosphere, and enriching the customer's car-buying experience.
  • Exclusive Stores: Highlighting new products, promotional activities, and brand stories to make the store more appealing.
  • Airports/Train Stations: Broadcasting flight/train information, advertisements, and travel guides to facilitate travelers.
  • Theaters/Science Museums: Serving as stage backgrounds or exhibition areas, enhancing performances or exhibitions with immersive visuals.
  • Industrial Parks: Displaying corporate culture, technological achievements, and future plans to forge a distinctive park brand image.

MD-0303S-Rotating-LED-Displays--05Conclusion

Our independently researched, developed, and designed indoor three-tier three-sided mechanical LED display, with its distinctive design concept, advanced technology, and broad applicability, is rapidly gaining popularity in modern commercial and public spaces. It not only effectively conveys information but also visually delights audiences with its stunning rotational movements and immersive display capabilities, adding vibrant and enriching visual experiences to various venues.

Details Specifications Specifications Remark
Display ltem Name Indoor P3 Indoor P3.076 Optional
Module Soft 240x120 Hard 320x160
Layers 3 3

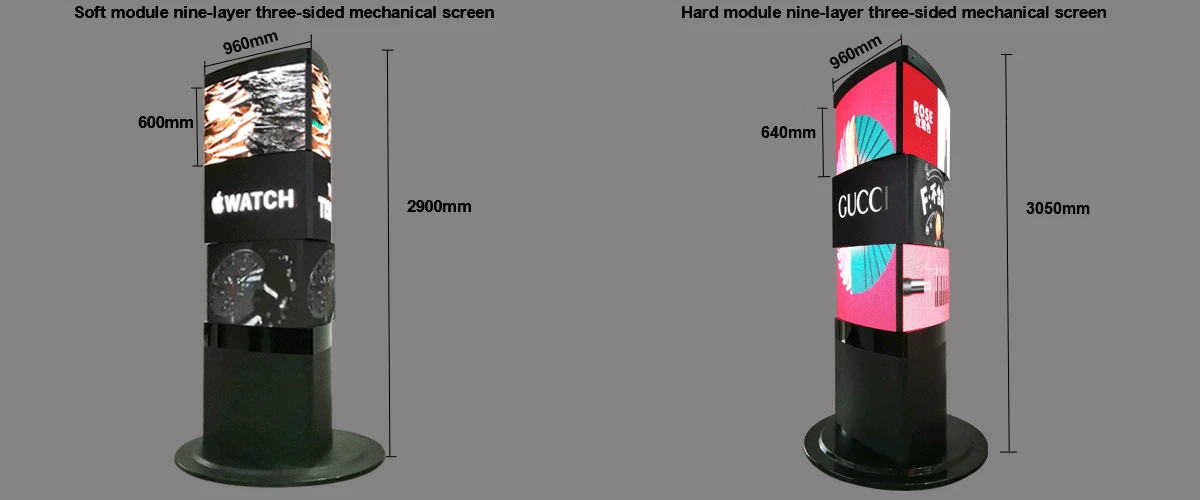

Size L1000*H1000*W2900 L1000*H1000*W3050
Display wide angle arc wide angle plane
Surface 9 9
Display Size/side 960*600mm 960*640mm
3layers/side 960*1800mm 960*1920mm When playing the full image, you can choose the synchronization mode.
Total Size 2880*1800mm 2880*1920mm
Total Height 2900mm 3050mm
Max Power 5.7KW 5.7KW Maximum power5.7KW, actual use is about 4KW

Control
Rotating Mold Optional Optional You can choose different rotation methods according to the image requirements
Rotating Speed Adjustable Adjustable The running speed can be adjusted according to user or screen requirements
Rotating Way 8 8 forward and reverse spirals, crossing, semisynchronous, synchronous
Switch PC/Mobilephone PC/Mobilephone
Control Remote Remote
Install Voltage 220V/380V 220V/380V
Installation Non-base Non-base The equipment comes with its own chassis, no installation foundation is required.
