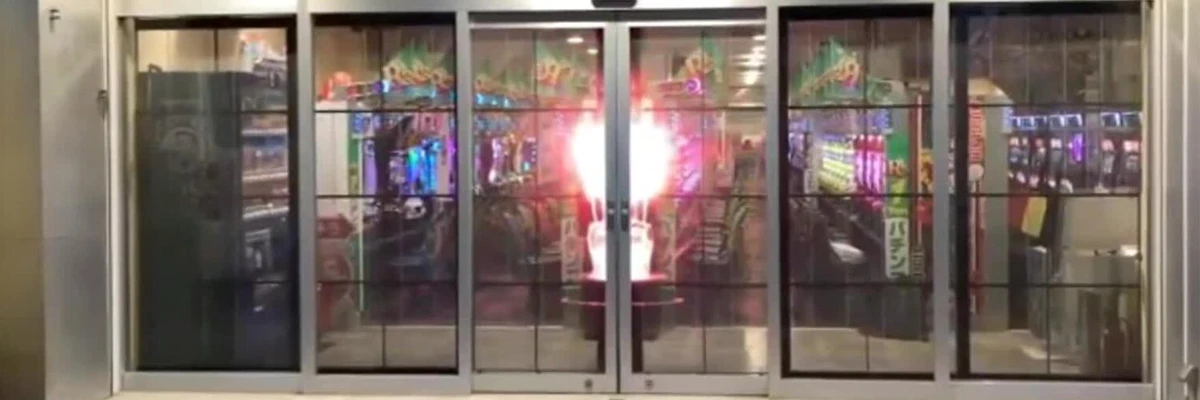

The transparent LED film display screens offer high transparency, rich colors, high brightness, and self-adhesive properties, making them ideal for shop window advertising displays.
High transparency
The biggest characteristic of holographic LED display screen is the permeability, boasting up to 80% transparency, which allows your products to be displayed along with our display screen in a complete and clear manner to customers. Especially in commercial centers, it does not require additional lighting as it does not block the sunlight.
Lightweight&Ultra-thin
The transparent LED display screen weight only 2kg/M2, it is extremely lightweight, saving you on transportation costs while also being very easy and quick to install, without the need for specialized tools or construction personnel.Its thicknesno more than 2MM, the holographic LED display screen can perfectly adhere to the glass wall without damaging the glass. It is easy to dismantle and will not leave any traces on the wall, so you can use it with confidence.

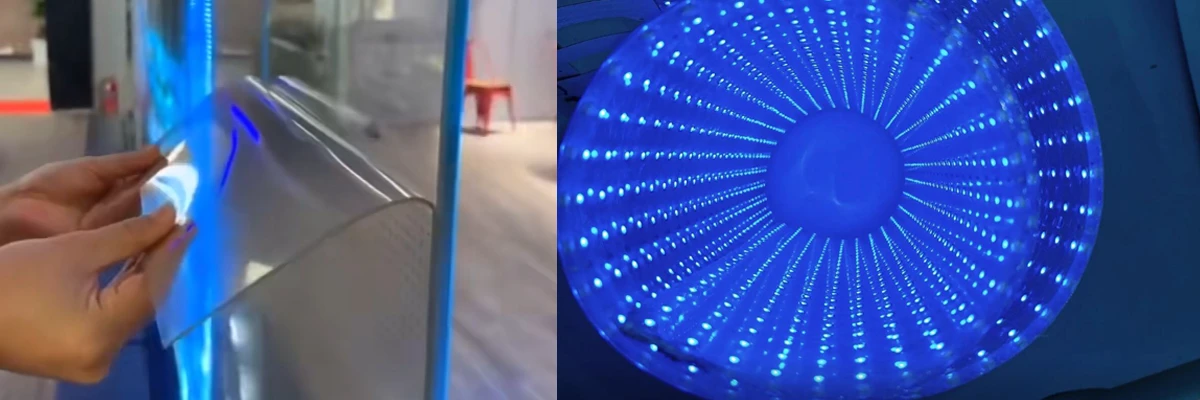

Flexible installation
The LED holographic transparent display screen can be cut and spliced according to the desired size, making installation flexible and reusable. Additionally,it can be bent and installed on irregularly shaped structures or curved glass walls.

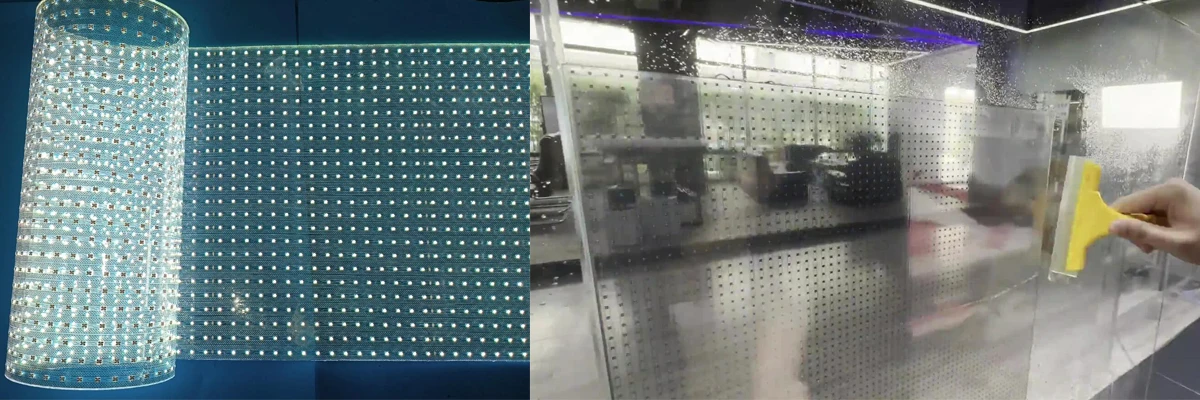

Self-adhesive
This film is self-adhesive, requiring no additional tools or structures. It maintains the aesthetic appeal of the glass curtain wall and does not obstruct the display of products in the store.
Specification
| Pixel pitch | P6.25 | P8 | P10 | P20 | P30 | P40 |
| Module resolution | 160×64 | 125×50 | 100×40 | 50×20 | 32×12 | 25×10 |
| Module pixel quantity | 10240 | 6250 | 4000 | 1000 | 384 | 250 |
| Pixel density(pixel/m²) | 27777 | 15625 | 10000 | 2500 | 1024 | 625 |
| Module size(WxHxD) | 1000×400 | |||||
| Module area | 0.4(㎡) | |||||
| Transparency rate | >85 | >90 | >95 | >97 | ||
| LED type | SMD 3-in-1 built-in driving IC | |||||
| Brightness | 2000cd/㎡ (Maximum 4000cd/m2） | |||||
| Color consistency | ≥97％ | |||||
| Viewing angle (H×V) | 160×160 | |||||
| Lifetime (hrs) | >800,000H | |||||
| Breakpoint reassuming | Support | |||||
| Working temperature | 0℃~45℃（indoor） | |||||
| Storage temperature | -20~45℃ | |||||
| Curve ability | 1, 100R | |||||
| Refresh rate（Hz） | ≥1920 | |||||
| Grayscale | 16bit | |||||
| Average power consumption | ≤360w/㎡ | |||||
| Max. power consumption | ≤600w/㎡ | |||||
