CH10R03-Arc-shaped splice LED rental display

The 1000x500mm rental LED display supports installation with a ±15° arc angle.

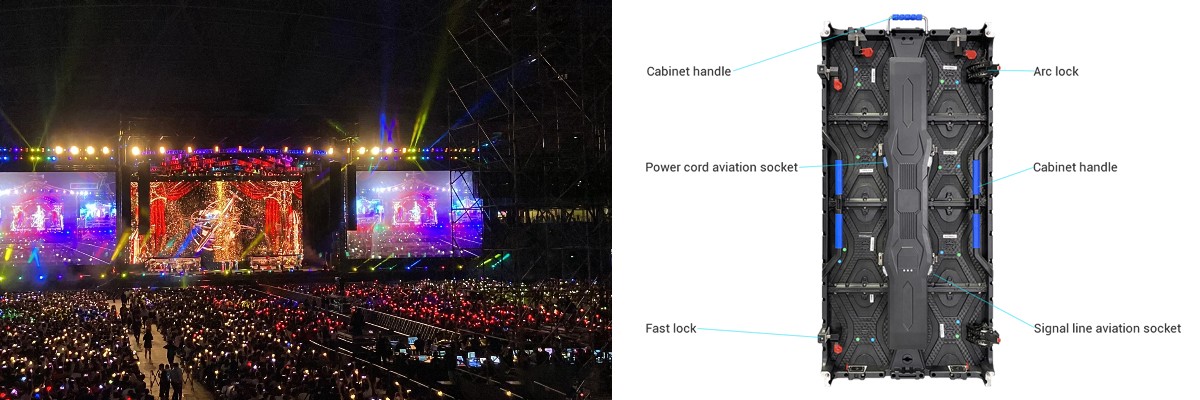

This is another 500x1000mm rental LED display cabinet from CHIFE, which can be matched with 250x250mm modules. It is widely used for outdoor and indoor stage rentals, commercial tours, new product launches, concerts, and other events. It is easy to carry and install, compatible with popular P2.604 p2.976 P3.91 p4.87 LED display modules.

rental led screen factory

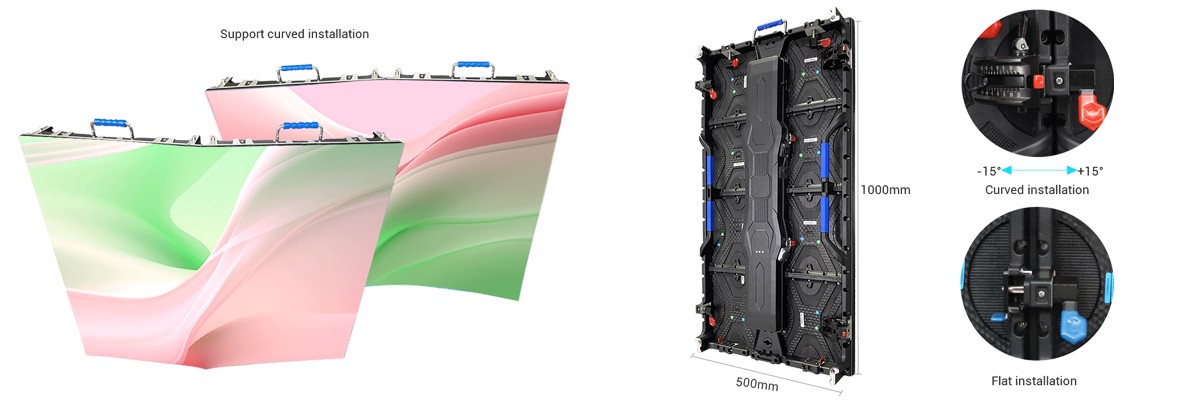

Support ±15°curved installation

We have added curved locks on the sides of the LED display cabinet, which allows it to be installed as a curved LED display screen, making the video image more focused and providing an immersive viewing experience for customers. The locks have measurement scales to ensure that the rental LED display screen connection is consistent and complete.

outdoor advertisement screen rental

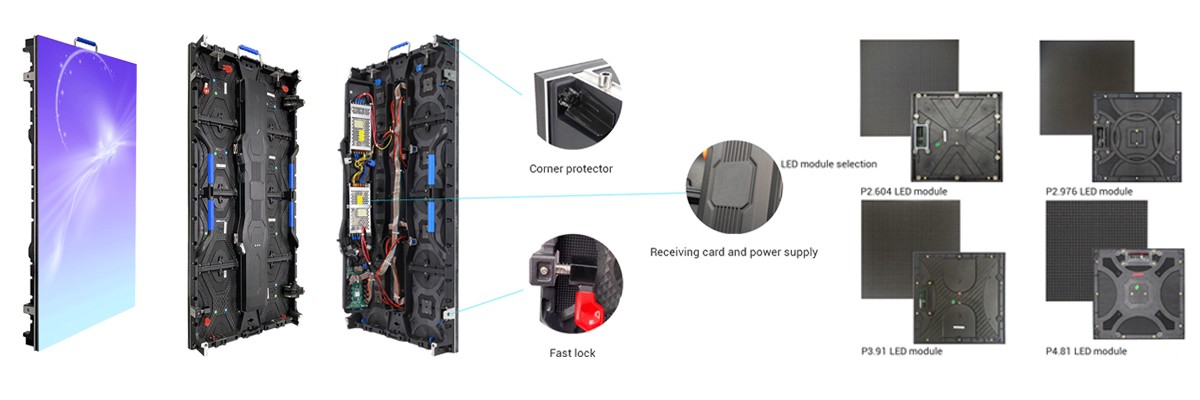

Portable rental design

The portable assembly design features a locking mechanism for all LED cabinet connections, allowing for assembly without the need for additional tools. Power and signal lines connect directly via plug-in sockets, ensuring safe and convenient operation. The power supply compartment is designed with a removable back cover, making maintenance easy.

rental led display module

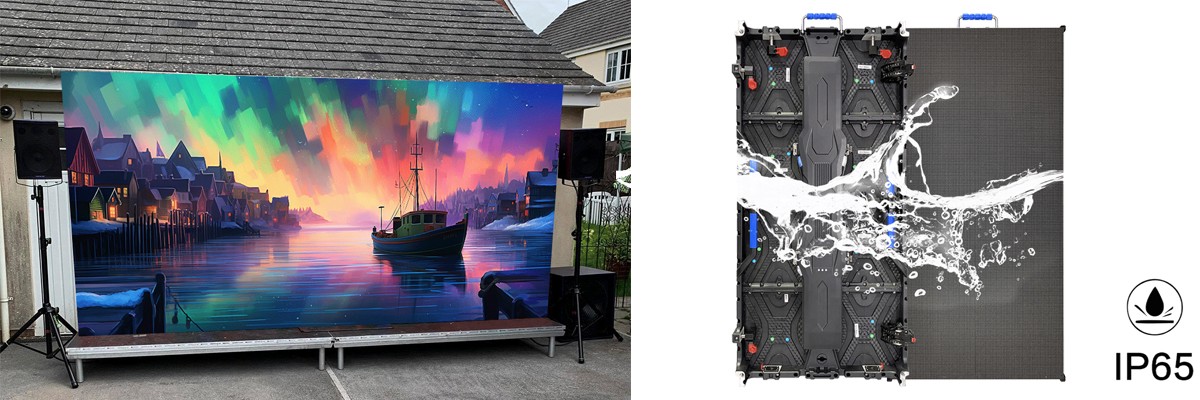

IP 65 waterproof

The outdoor LED advertising display supports IP65 waterproof, the display effect remains a clear image in severe weather conditions during outdoor activities.

outdoor display screen rental

Specification

Pixel Pitch (mm) P2.6 P2.97 P3.91 P4.81
Pixel Configuration SMD1415 SMD1921
Density (Pixels/㎡) 147,928 112,896 65,536 43,264
Module Resolution (Pixel) 96x96 84x84 64x64 52x52
Module Size (mm) 250x250
Driving Mode (Duty) 1/21 1/16 1/13
Cabinet Size (mm) 500x1000
Cabinet Weight (KG) 12.6
Brightness (CD/㎡) 4500 4800 4200
Viewing Angle (°) 140
Gray Grade (Bits) 14
Operation Power AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 720 560
Avg. Power Consumption (W/㎡) 240 190
Frame Frequency (Hz) ≥60
Refresh Frequency (Hz) 3,840 1,920/3,840 1,920/3,840
Working Temperature (ºC) -20~+60
Lifetime (Hours) 100,000
Protection Grade IP65
