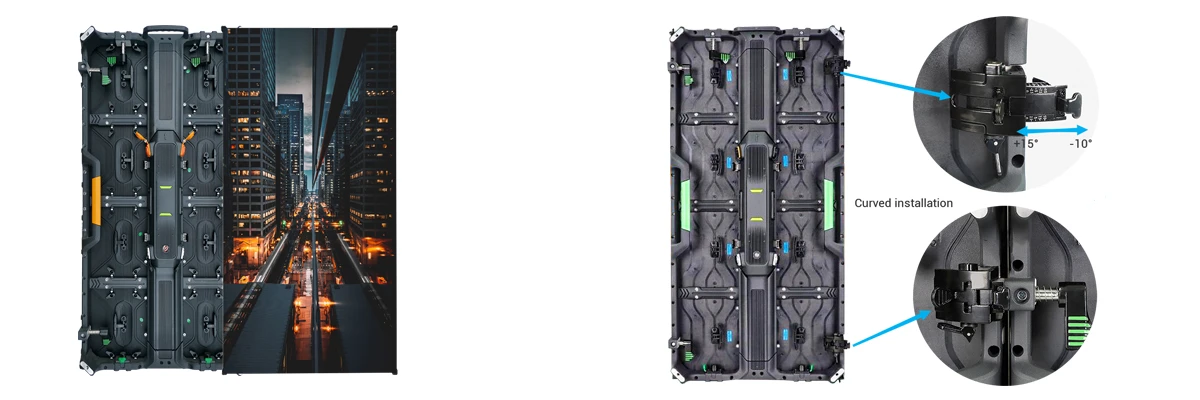

The hardwired LED rent display compared to 500x500mm is faster and easier to assemble on giant commercial led screen video wall applications,saving time on wiring and other assembly task.
Hard connection&portable design

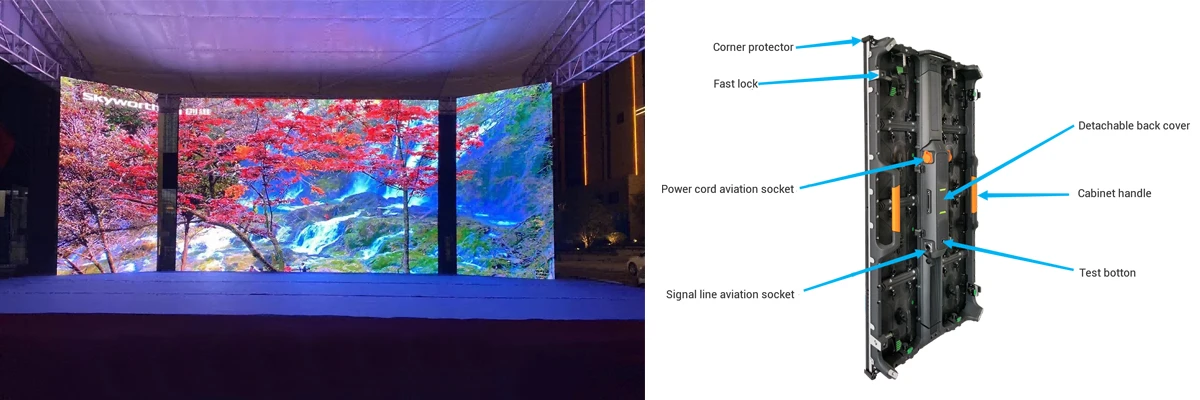

Hard connection is the most convenient and efficient way to assemble screen video wall.the backside of the cabinet include power socket and signal socket to reduce assembly processes and time, fast lock and arc lock to ease assembly and disassembly. And four corner protector on the cabinet minimize the risk of transportation.
Rental LED module

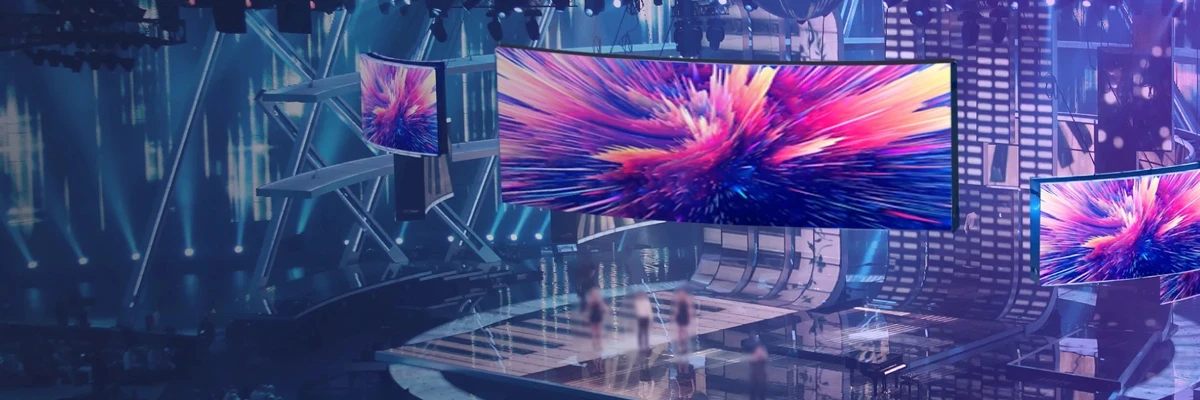

The cabinet can work with 250x250mm led display modules, and it is compatible with the P2.604/P2.976/P3.91/P4.81 dot pitch led display modules, it suitable for a wide range of applications including stage rental, shopping malls, large events, and exhibitions, etc.

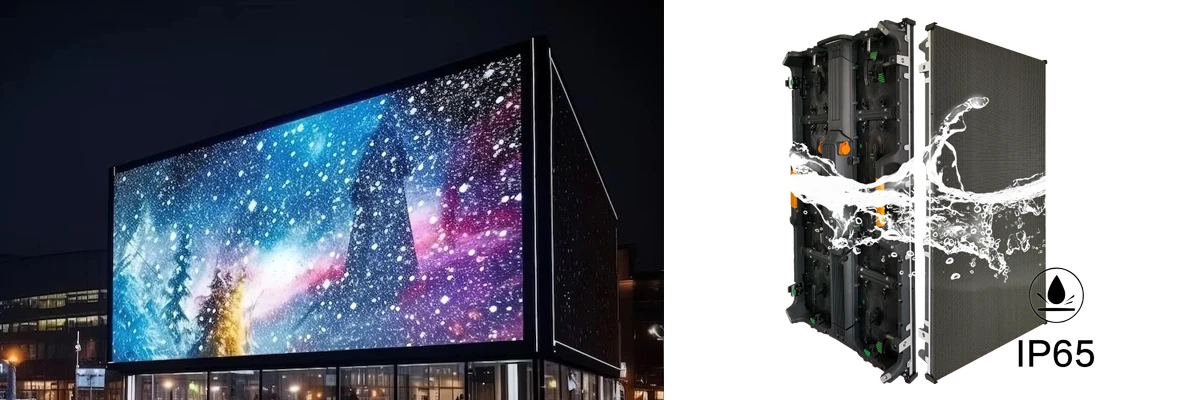

IP 65 waterproof for outdoor
The outdoor LED advertising display supports IP65 waterproof, the display effect remains a clear image in severe weather conditions during outdoor activities.
Specification
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
| Pixel Configuration | SMD1415 | SMD1921 | ||
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | |||
| Driving Mode (Duty) | 1/21 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x1000 | |||
| Cabinet Weight (KG) | 12.6 | |||
| Brightness (CD/㎡) | 4500 | 4800 | 4200 | |
| Viewing Angle (°) | 140 | |||
| Gray Grade (Bits) | 14 | |||
| Operation Power | AC100-240V 50-60Hz | |||
| Max. Power Consumption (W/㎡) | 720 | 560 | ||
| Avg. Power Consumption (W/㎡) | 240 | 190 | ||
| Frame Frequency (Hz) | ≥60 | |||
| Refresh Frequency (Hz) | 3,840 | 1,920/3,840 | 1,920/3,840 | |
| Working Temperature (ºC) | -20～+60 | |||
| Lifetime (Hours) | 100,000 | |||
| Protection Grade | IP65 | |||
