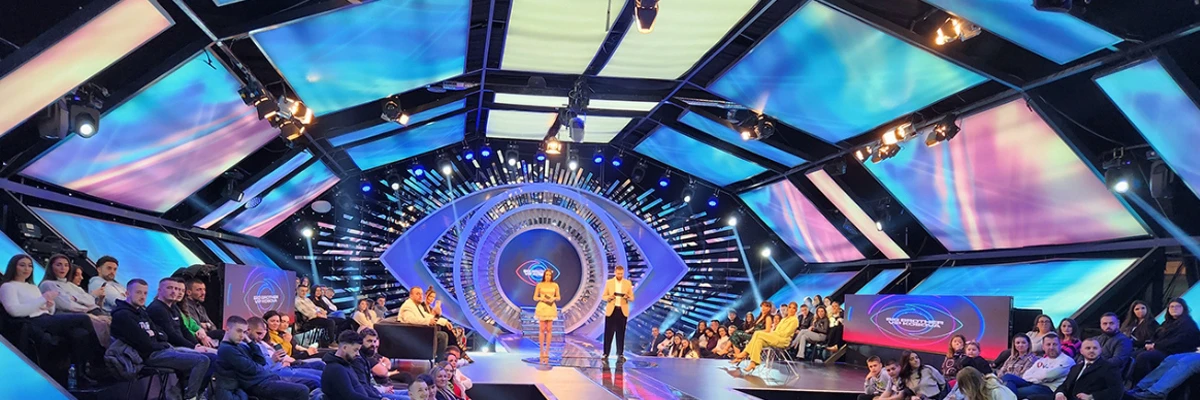

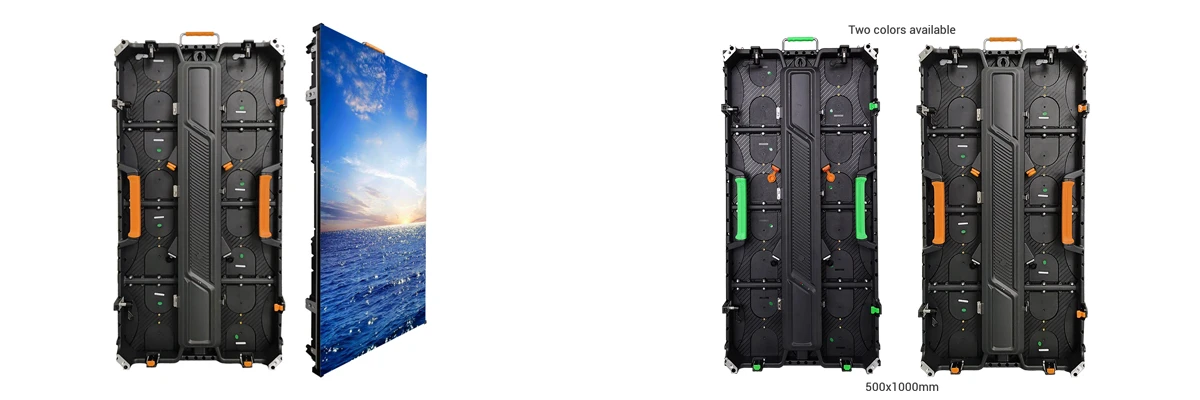

The LED display cabinet can be used in outdoor and indoor scenarios.Compared to 500x500mm, the cabinet is faster and easier to assemble on giant commercial led screen video wall applications,saving time on wiring and other assembly task.
Portable&convenient design

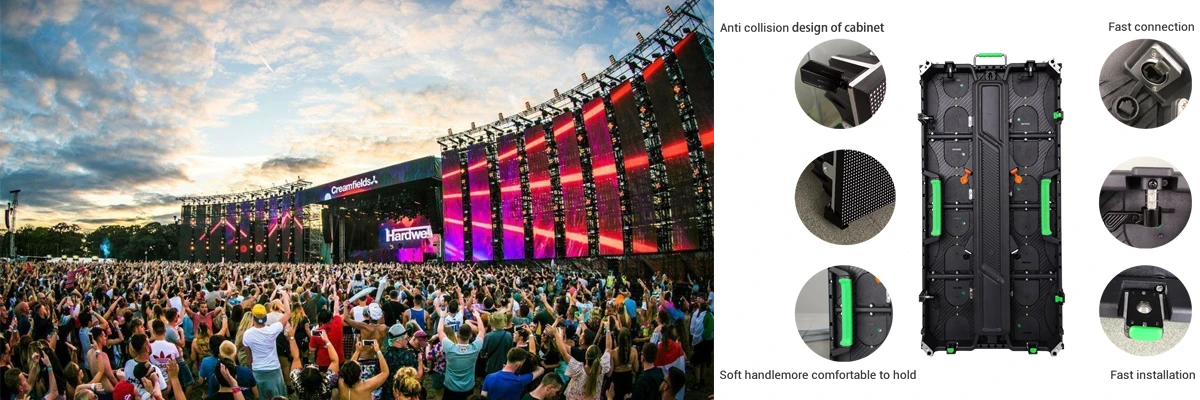

As is shown in the picture, there are two quick locking devices on the double sides, which allows faster assembly speed and better seamless splicing. These two soft handles ensure that the engineer can reduce handing and assembly effort. Besides, the anti collision design of cabinet can shipping risks and maintenance cost.
Compatible with 250x250 LED modules
The cabinet can work with 250x250mm led display modules, and it is compatible with the P2.604/P2.976/P3.91/P4.81 dot pitch led display modules, it suitable for a wide range of applications including stage rental, shopping malls, large events, and exhibitions, etc.

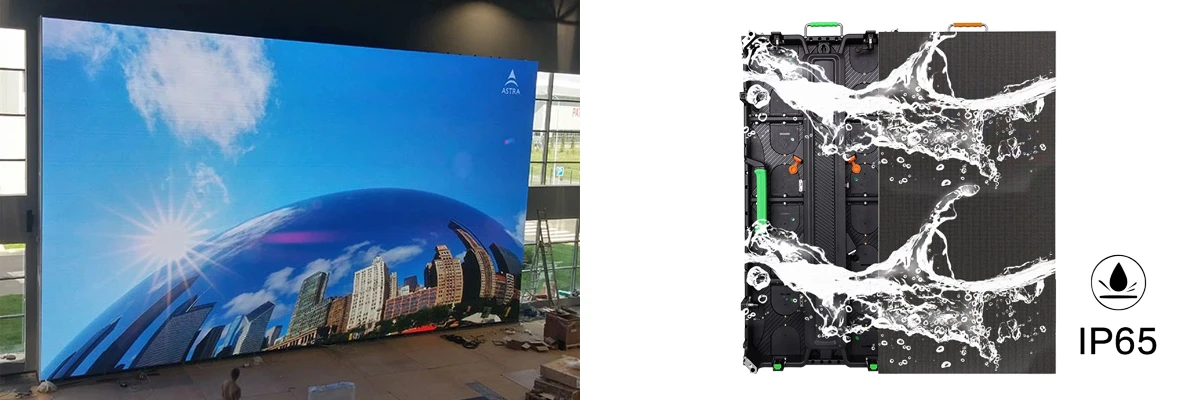

IP 65 waterproof for outdoor
The outdoor LED advertising display supports IP65 waterproof, the display effect remains a clear image in severe weather conditions during outdoor activities.
Specification
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
| Pixel Configuration | SMD1415 | SMD1921 | ||
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | |||
| Driving Mode (Duty) | 1/21 | 1/16 | 1/13 | |
| Cabinet Size (mm) | 500x1000 | |||
| Cabinet Weight (KG) | 12.6 | |||
| Brightness (CD/㎡) | 4500 | 4800 | 4200 | |
| Viewing Angle (°) | 140 | |||
| Gray Grade (Bits) | 14 | |||
| Operation Power | AC100-240V 50-60Hz | |||
| Max. Power Consumption (W/㎡) | 720 | 560 | ||
| Avg. Power Consumption (W/㎡) | 240 | 190 | ||
| Frame Frequency (Hz) | ≥60 | |||
| Refresh Frequency (Hz) | 3,840 | 1,920/3,840 | 1,920/3,840 | |
| Working Temperature (ºC) | -20～+60 | |||
| Lifetime (Hours) | 100,000 | |||
| Protection Grade | IP65 | |||
