This rental LED cabinet is another product developed by the company, utilizing a hard-wired design that supports plug-and-play cards. This design significantly enhances portability and safety during installation and disassembly, making it highly favored in the market.
Hard connection
The use of plug-and-play card hard-wired design avoids the cumbersome cable arrangement, not only saving time during display screen installation but also enhancing safety. This type of hard-wired design also saves internal space in the enclosure, helping to improve heat dissipation efficiency and thereby enhancing operational stability. These optimization measures make the product more efficient and reliable.

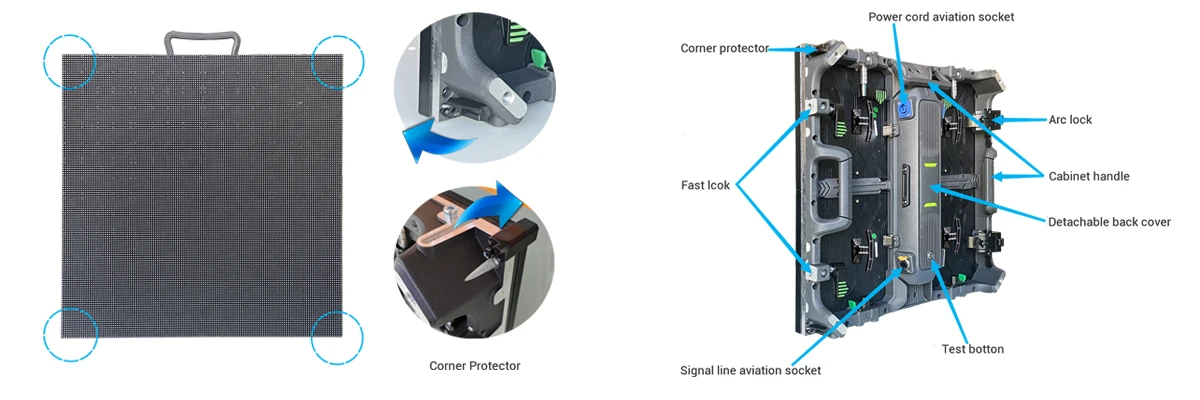

Portable rental design
The portable assembly design features a locking mechanism for all LED cabinet connections, allowing for assembly without the need for additional tools. Power and signal lines connect directly via plug-in sockets, ensuring safe and convenient operation. The power supply compartment is designed with a removable back cover, making maintenance easy.

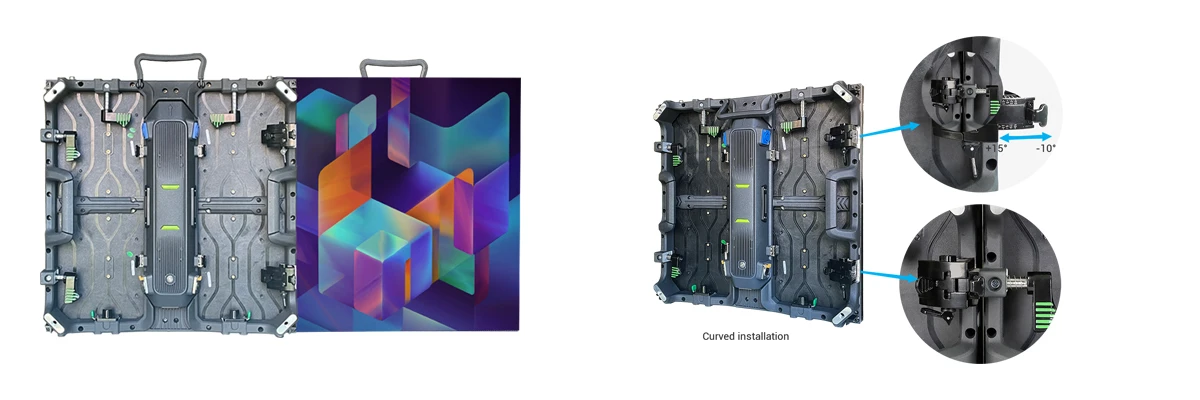

Curved installation

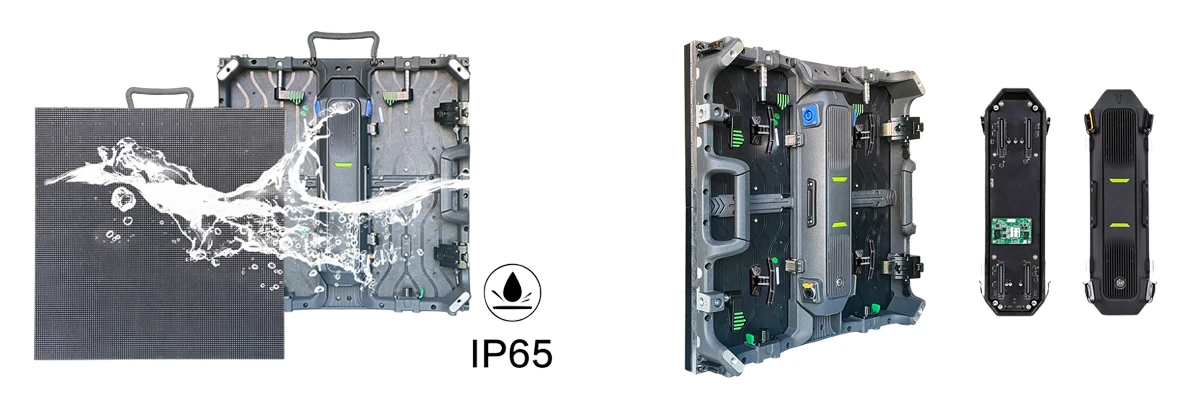

Supporting a curvature of about 15 degrees for installation allows for more focused display content, enhancing the immersive viewing experience. Additionally, with an IP65 outdoor waterproof rating, it can handle unexpected severe weather conditions.
Specification
| Pixel Pitch (mm) | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Configuration | SMD1415 | SMD1921 | ||
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | |||
| Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x500 | |||
| Cabinet Weight (KG) | 7 | |||
| Brightness (CD/㎡) | 4500 | 4800 | 4200 | |
| Viewing Angle (°) | 140 | |||
| Gray Grade (Bits) | 14 | |||
| Operation Power | AC100-240V 50-60Hz | |||
| Max. Power Consumption (W/㎡) | 720 | 560 | ||
| Avg. Power Consumption (W/㎡) | 240 | 190 | ||
| Frame Frequency (Hz) | ≥60 | |||
| Refresh Frequency (Hz) | 3,840 | |||
| Working Temperature (ºC) | -20～+60 | |||
| Lifetime (Hours) | 100,000 | |||
| Protection Grade | IP65 | |||
