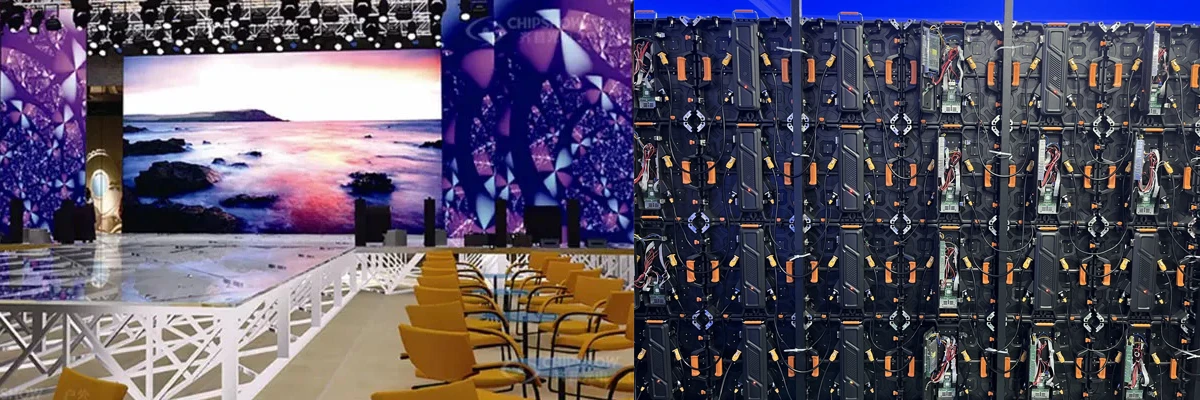

With the increasing demand for stage performances, entertainment events, and large-scale activities, the need for rental LED display screens is growing. Our product, made of die-cast aluminum, is lightweight and easy to install, meeting your needs for quick setup and flexible use. It is the ideal solution for advertising displays.
500x500mm LED display cabinet
This cabinet designed for commercial displays. It features smooth edges for shock resistance, high brightness, high refresh rate, correct grayscale and contrast, etc. Cabinet size is 500x500mm, easy to carry and assemble, very suitable for commercial displays.

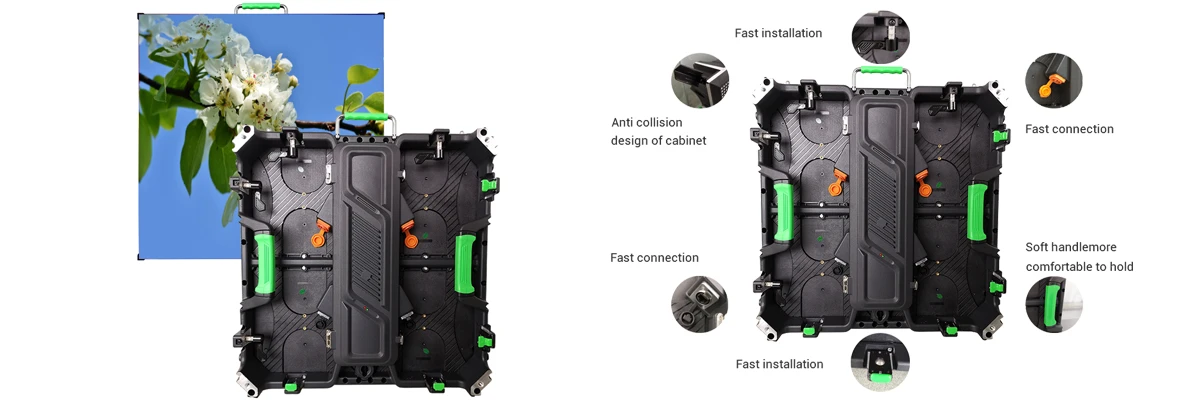

Perfect rental led display design
Die-casting aluminum cabinet,high precision CNC machining, the flatness and seam are less than 0.05mm,Fast lock for cabinet connection,easy installation and disassembly

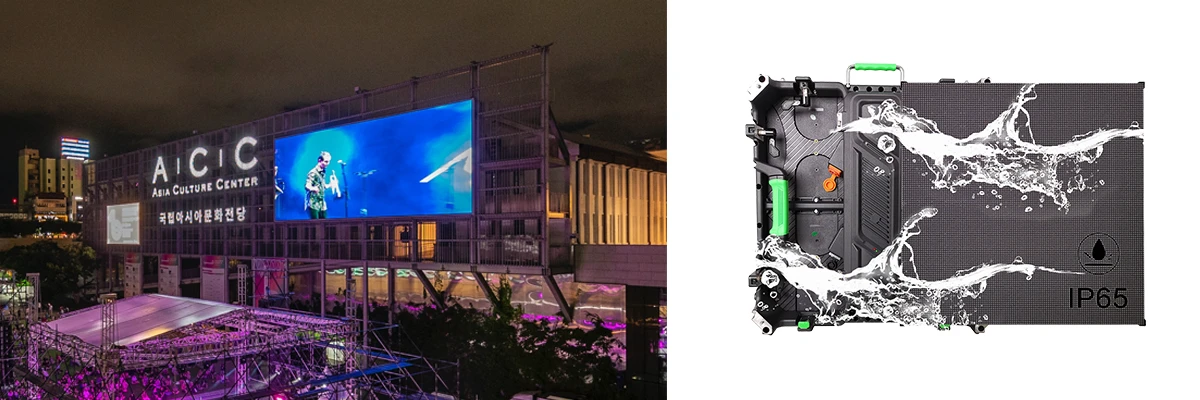

IP 65 waterproof grade
Our rental led display supports IP65 waterproof,it can resists severe weather conditions during outdoor activities.enable us to continue the event activities without any pressure.
Specification
| Pixel Pitch (mm) | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Configuration | SMD1415 | SMD1921 | ||
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | |||
| Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x500 | |||
| Cabinet Weight (KG) | 7.3 | |||
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 4200 |
| Viewing Angle (°) | 140 | |||
| Gray Grade (Bits) | 14 | |||
| Operation Power | AC100-240V 50-60Hz | |||
| Max. Power Consumption (W/㎡) | 720 | |||
| Avg. Power Consumption (W/㎡) | 240 | |||
| Frame Frequency (Hz) | ≥60 | |||
| Refresh Frequency (Hz) | 3,840 | 1,920/3,840 | ||
| Working Temperature (ºC) | -20～+60 | |||
| Lifetime (Hours) | 100,000 | |||
| Protection Grade | IP65 | |||
