The rental LED display cabinet is more compact and lightweight, and can be used with 250x250mm LED display modules. This allows for quick estimation of the display screen's usage area and more flexible installation according to the usage scenario.
Portable rental design

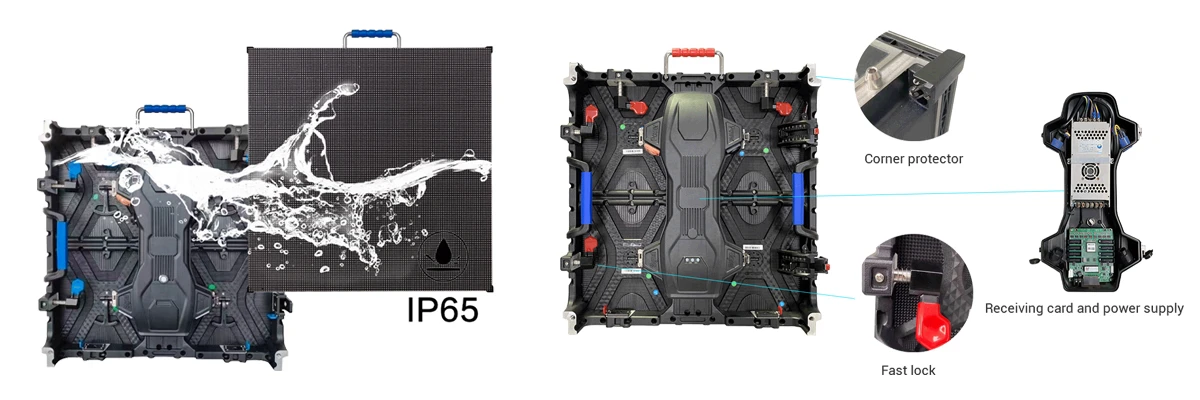

The portable assembly design features a locking mechanism for all LED cabinet connections, allowing for assembly without the need for additional tools. Power and signal lines connect directly via plug-in sockets, ensuring safe and convenient operation. The power supply compartment is designed with a removable back cover, making maintenance easy.

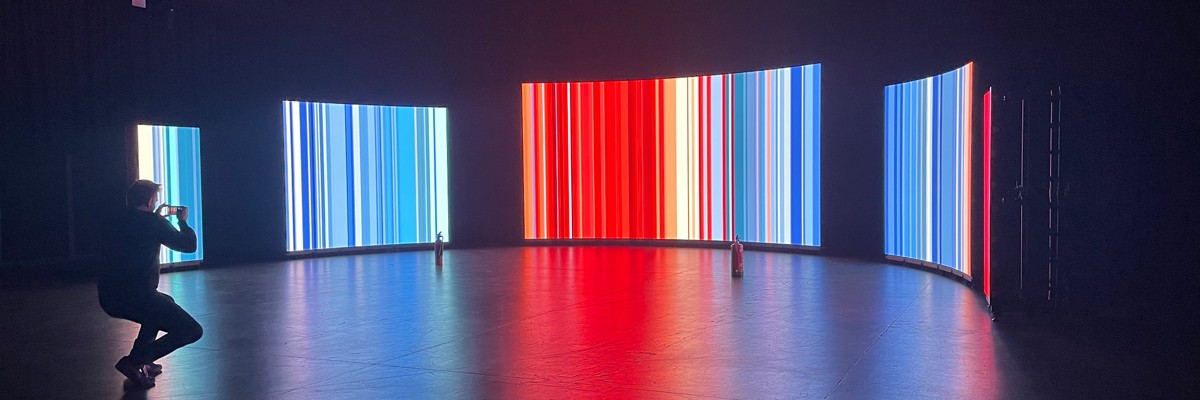

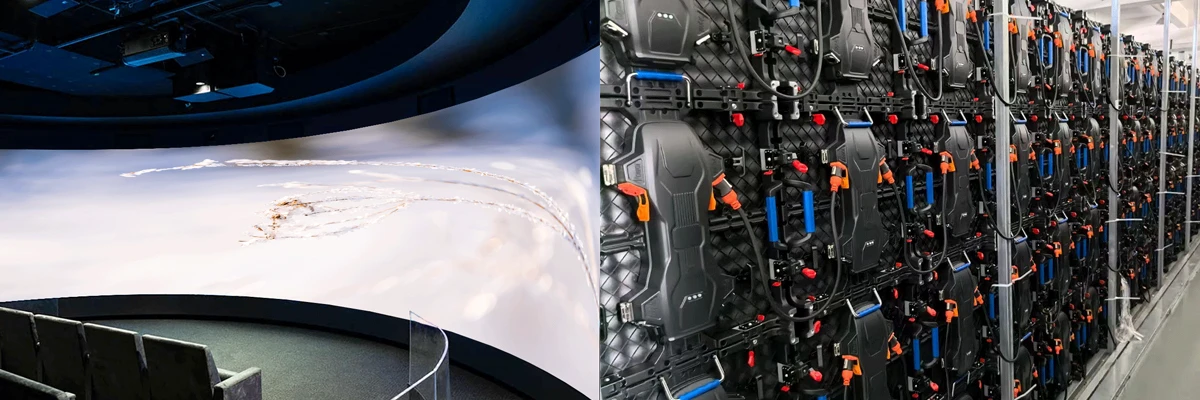

LED display curved installation

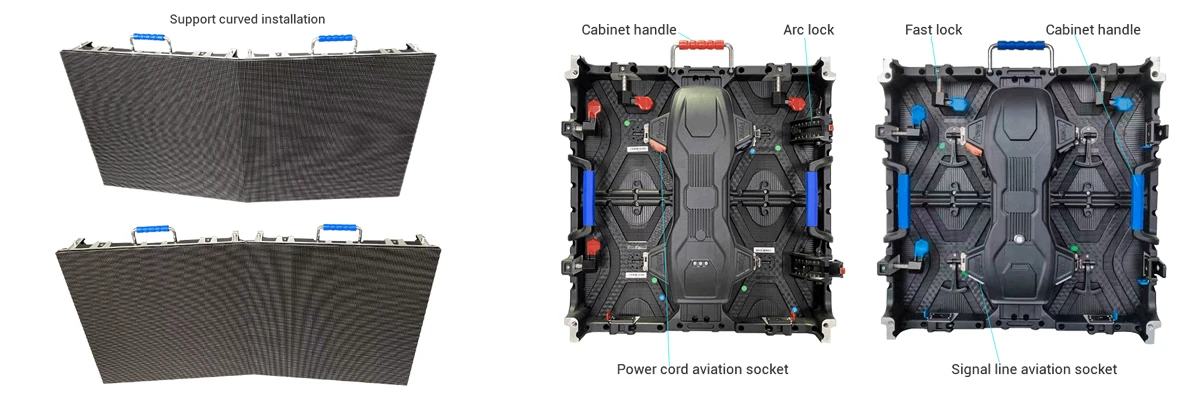

We have added curved locks on the sides of the LED display cabinet, which allows it to be installed as a curved LED display screen, making the video image more focused and providing an immersive viewing experience for customers. The locks have measurement scales to ensure that the rental LED display screen connection is consistent and complete.
Most widely used LED display panel
LED advertising displays are becoming increasingly prevalent in the rental market, driving up the demand for rental display cabinets that are designed for repeated use and rapid installation. Among these cabinets, the 3.91mm pitch LED modules which are compatible for both outdoor and indoor use, are the most widely accepted by the market.
IP65 waterpoof
Both the modules and the cabinet support IP65 waterproof rating, even if you encounter inclement weather during use, you will have some adjustment time to ensure that your advertising activities are not affected by the weather and equipment.
Specification
| Pixel Pitch (mm) | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Configuration | SMD1415 | SMD1921 | ||
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size (mm) | 250x250 | |||
| Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500x500 | |||
| Cabinet Weight (KG) | 7.3 | |||
| Brightness (CD/㎡) | 4500 | 4800 | 4200 | |
| Viewing Angle (°) | 140 | |||
| Gray Grade (Bits) | 14 | |||
| Operation Power | AC100-240V 50-60Hz | |||
| Max. Power Consumption (W/㎡) | 720 | 560 | ||
| Avg. Power Consumption (W/㎡) | 240 | 190 | ||
| Frame Frequency (Hz) | ≥60 | |||
| Refresh Frequency (Hz) | 3,840 | 1,920/3,840 | 1,920/3,840 | |
| Working Temperature (ºC) | -20～+60 | |||
| Lifetime (Hours) | 100,000 | |||
| Protection Grade | IP65 | |||
