The outdoor LED display cabinet is specially designed for 500x250mm LED display modules, supporting both front and rear maintenance services.we can calculate the screen size easily based on the cabinet size.

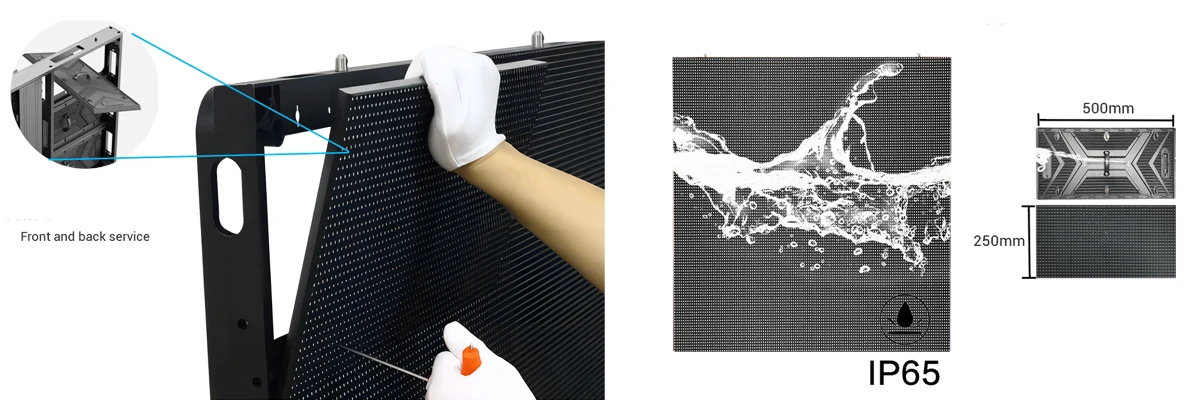

Front&Rear maintenance service
Designed with dual side maintenance,the Led display panels can be assembled and disassembled easily&quickly,save your maintenance time and cost.
Easy to calculate&install

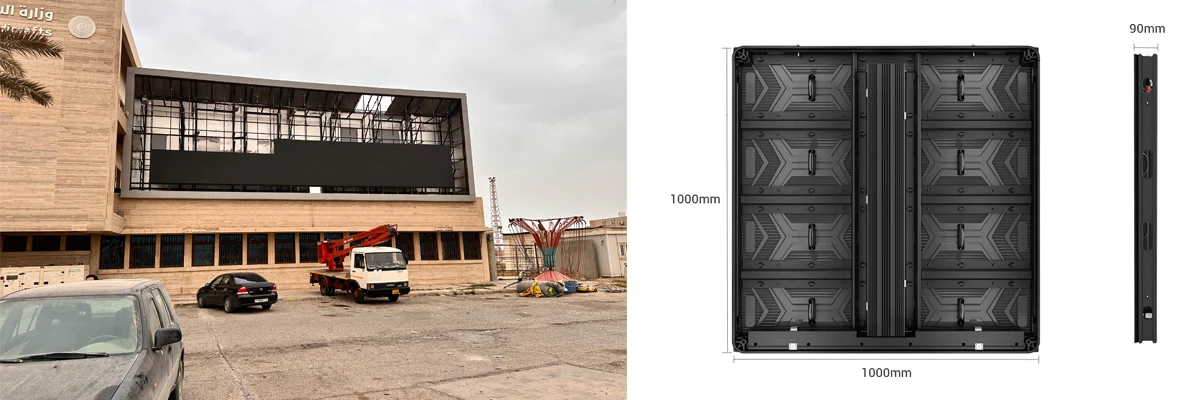

The 1000x1000mm LED cabinet makes it easy to calculate the size of the LED display screen you want to install. Additionally, the modules and power supply can be accessed from both the front and back sides, saving you a significant amount of maintenance time.
Hard connection method
The modules use a plug-and-play hard connection method, which not only simplifies assembly but also saves internal space and helps with heat dissipation.the module also support IP65 waterproof,The modules also support a method whereby they can function normally outdoors even in harsh weather conditions
Super slim&light
The led cabinet thickness only 92mm and weight 23kg,it very suitable for outdoor big display screen
Specification
| Model | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| Pixel Pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.42mm |
| LED Type | SMD1921 | SMD2727 | |||
| Pixel Composition | 1R1G1B | ||||
| Pixel Density | 65,536 | 43,264 | 25,600 | 16,384 | 9,216 |
| Module Size (mm) | 500x250 | ||||
| Module Pixel (pixels) | 8,192 | 5,408 | 3,200 | 2,048 | 1,152 |
| Cabinet Size (mm) | 1000x1000 | ||||
| Cabinet Material | Aluminum | ||||
| Brightness (nits) | 6500-9000 | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Viewing Angle | 140/140° （H/V) | ||||
| Color Depth | 16bits | ||||
| Gray Scale | 65536 level | ||||
| Number of Colors | 281 trillion | ||||
| Max. Power Consumption | 800w/sqm | 720w/sqm | 650w/sqm | ||
| Ave. Power Consumption | 265w/sqm | 240w/sqm | 220w/sqm | ||
| Operating Temperature | -20℃ - 60℃ | ||||
| Operating Humidity | 10% - 90% | ||||
| Input Voltage | 100 - 240V | ||||
| Frame Frequency | 50-60HZ | ||||
| IP Rating | IP65 | ||||
| Life Span | 100,000 hours | ||||
| Service | Modules, Power Box can all be serviced from front & back side | ||||
