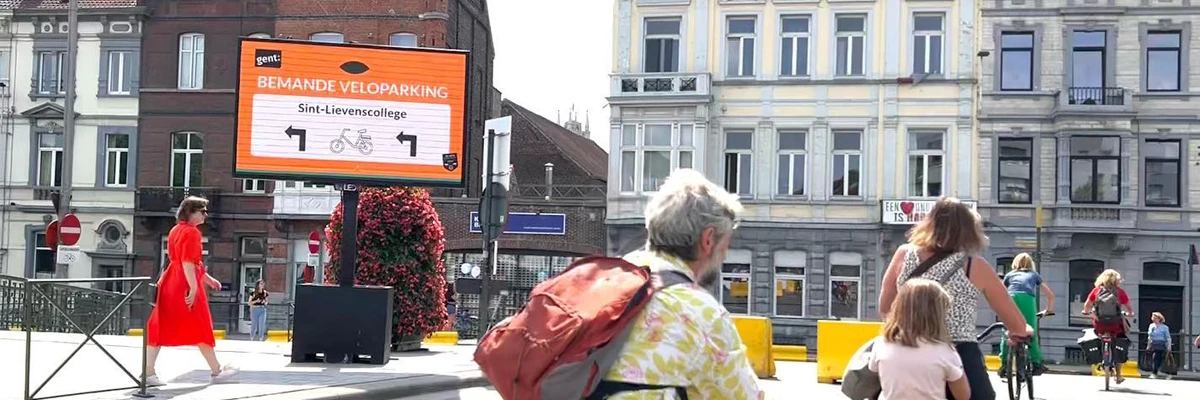

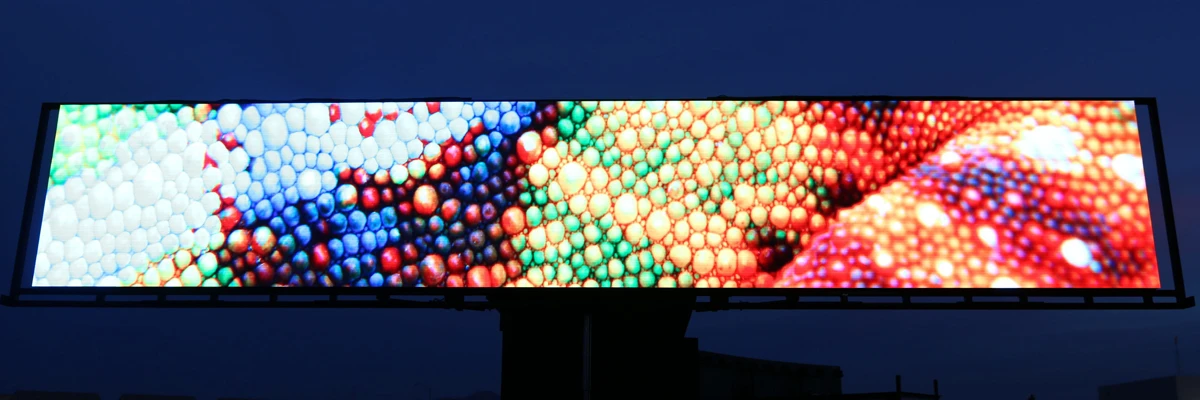

This is a display screen cabinet specifically designed for outdoor fixed installation. The outdoor waterproof LED display features a rear maintenance locking mechanism design, is highly practical for outdoor advertising billboards and LED video walls.
Designed for Outdoor

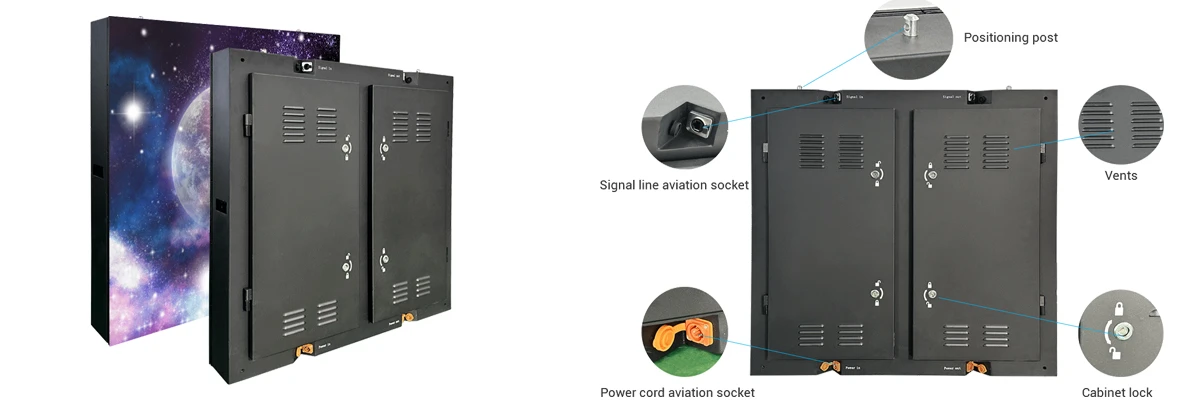

Open the back cover of LED display led signs, and all components such as the power supply,control system,receiv card and cables can be installed or removed from the back of the chassis. There's a built-in one-key switch lock inside the LED cabinet making the operation very simple.

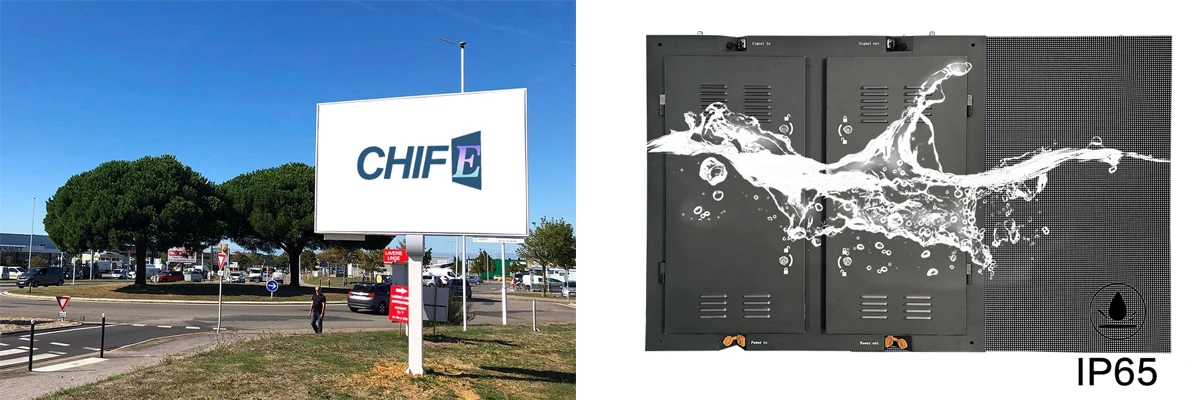

IP65 Waterproof
The waterproof rating reaches IP65, even encountering rainy or snowy weather outdoors, it can still be used normally without being affected.
Extreme temperature tolerance
Our outdoor LED display screen can operate normally even at -20 ℃ and inside the cabinet, we have installed cooling fans and ventilation openings, allowing it to operate at temperatures up to 65 ℃.
Specification
| Pixel Pitch (mm) | P4 | P5 | P6 | P6.67 | P8 | P10 (2S) | P10 (4S) |
| Pixel Configuration | SMD1921 | SMD3535 | |||||
| Density (Pixels/㎡) | 62,500 | 40,000 | 27,777 | 22,477 | 15,625 | 10,000 | 10,000 |
| Module Resolution (Pixels) | 80x40 | 64x32 | 32x32 | 48x24 | 40x20 | 32x16 | 32x16 |
| Module Size (mm) | 320x160 | ||||||
| Driving Mode (Duty) | 1/10 | 1/8 | 1/8 | 1/6 | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 960x960 | ||||||
| Brightness (CD/㎡) | 5,500 | 6,000 | 5,500 | 5,800 | 4,500 | ||
| Viewing Angle (°) | 140 | ||||||
| Gray Grade (Bits) | 14 | ||||||
| Operation Power | AC100-240V 50-60Hz | ||||||
| Max. Power Consumption (W/㎡) | 900 | 836 | 800 | 840 | 760 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 300 | 280 | 350 | 280 | 260 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ||||||
| Refresh Frequency (Hz) | 1920/3840 | ||||||
| Working Temperature (ºC) | -20～+60 | ||||||
| Lifetime (Hours) | 100,000 | ||||||
| Protection Grade | IP65 | ||||||
