This cabinet is the outdoor energy-saving LED display screen with 960X960mm size and 320x320mm frontal & rear service LED module. Ultra-low heat and excellent performance can improve energy efficiency and environmental protection.
Energy saving
By using the separate power supply and accurately distributing the current to the lamp beads, energy consumption is reduced. This method not only lowers power consumption but also ensures the normal operation and longevity of the lamp beads. Moreover, the screen cabinet itself has excellent heat dissipation, with temperatures approximately 16°C lower than regular LED display products, further extending the equipment's lifespan and enhancing stability and reliability.

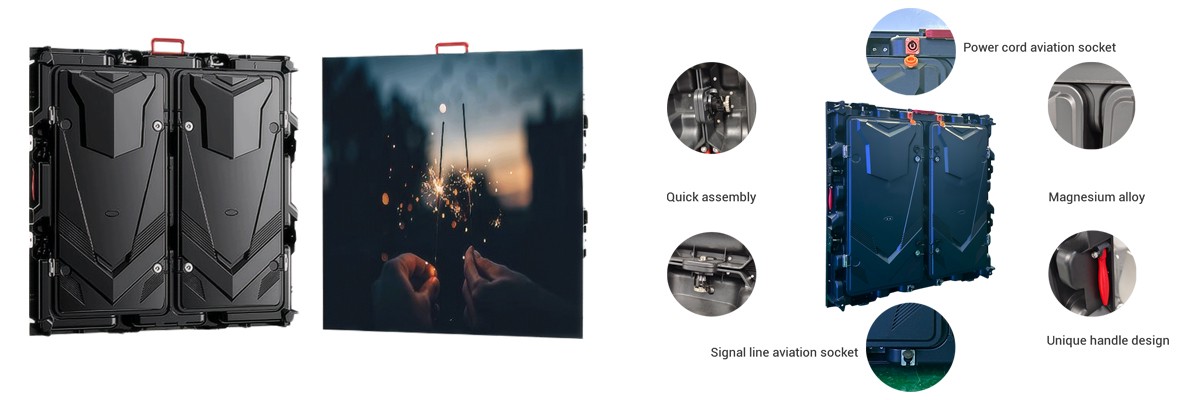

960x960mm standard structure
Our energy-saving LED display features a stylish hard alloy LED cabinet, designed with top-notch product structure to enhance heat dissipation and minimize heat generation. The display maintains uniform heat distribution, consistent color temperature, and zero color blocks, ensuring an excellent picture quality. It maximizes energy savings without compromising on brightness and contrast levels of the LED display.
Easy to maintenance back cover
The back cover designed with lock function.it can be opened for maintenance and heat dissipation.
Specification
| Pixel Pitch (mm) | P4 | P5 | P8 | P10 (2S) | P10 (4S) |
| Pixel Configuration | SMD1921 | SMD3535 | |||
| Density (Pixels/㎡) | 62,500 | 40,000 | 15,625 | 10,000 | |
| Module Resolution (Pixel) | 80x80 | 64x64 | 40x40 | 32x32 | |
| Module Size (mm) | 320x320 | ||||
| Driving Mode (Duty) | 1/10 | 1/8 | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 960x960 | ||||
| Cabinet Weight (KG) | 29 | 29 | 29 | 29 | 29 |
| Brightness (CD/㎡) | 5,500 | 5,800 | 4,500 | ||
| Viewing Angle (°) | 140 | ||||
| Gray Grade (Bits) | 14 | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Max. Power Consumption (W/㎡) | 909 | 836 | 600 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 303 | 280 | 200 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ||||
| Refresh Frequency (Hz) | 1920 / 3840 | ||||
| Working Temperature (ºC) | -20～+60 | ||||
| Lifetime (Hours) | 100,000 | ||||
| Protection Grade | IP65 | ||||
