This LED display screen cabinet is designed based on a 16:9 high-definition display ratio, providing a detailed and vivid display with saturated colors. It is the perfect alternative to LCD displays, offering a compelling solution.

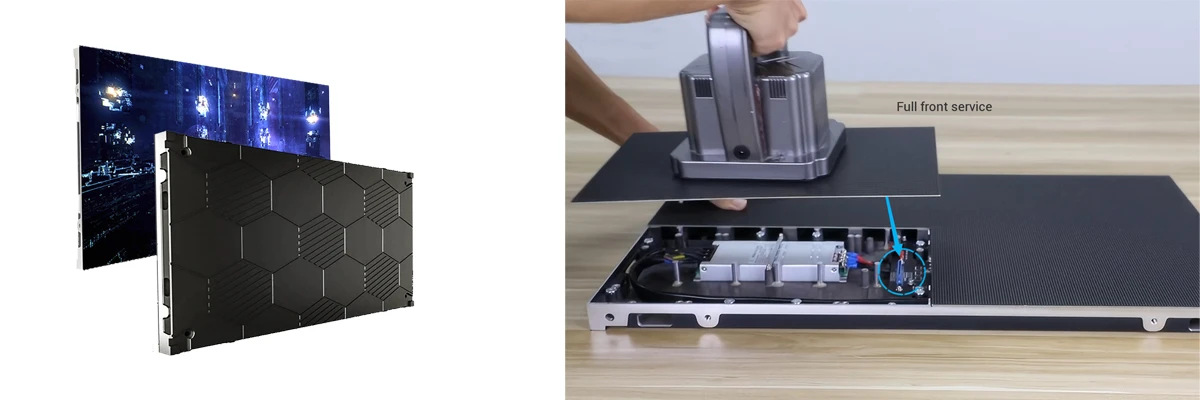

Front Service Design
The cabinet is designed with front maintenance in mind, allowing for the replacement of LED modules, power supplies, and LED controller cards from the front side of the cabinet. Additionally, the LED panels are assembled using magnets for easy installation.
16:9 HD display ratio
Work with P1.25/P1.53/P1.86mm HD display modules, it achieves an ultra-clear visual experience with a perfect 16:9 display ratio, making it the ideal product to replace traditional LCD products.
Wireless LED display modules
The LED modules and power supply feature a plug-and-play design, eliminating the need for power cords and making installation and servicing easy, saving time and ensuring safety.
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 |
| Pixel Configuration | SMD1010 | SMD1515 | |
| Density (Pixels/㎡) | 640,000 | 418,889 | 286,667 |
| Module Resolution (Pixel) | 256x144 | 208x116 | 172x96 |
| Module Size (mm) | 320x180 | ||
| Driving Mode (Duty) | 1/60 | 1/60 | 1/64 |
| Cabinet Size (mm) | 640x360 | ||
| Cabinet Weight (KG) | 4.1 | ||
| Brightness (CD/㎡) | 300~800 | ||
| Viewing Angle (°) | 140 | ||
| Gray Grade (Bits) | ≥14 | ||
| Operation Power | AC100-240V 50-60Hz | ||
| Max. Power Consumption (W/㎡) | ≤ 500 | ||
| Avg. Power Consumption (W/㎡) | 100~180 | ||
| Frame Frequency (Hz) | ≥60 | ||
| Refresh Frequency (Hz) | ≥3,840 | ||
| Working Temperature (ºC) | -10～+60 | ||
| Lifetime (Hours) | 100,000 | ||
| Protection Grade | IP35 | ||
