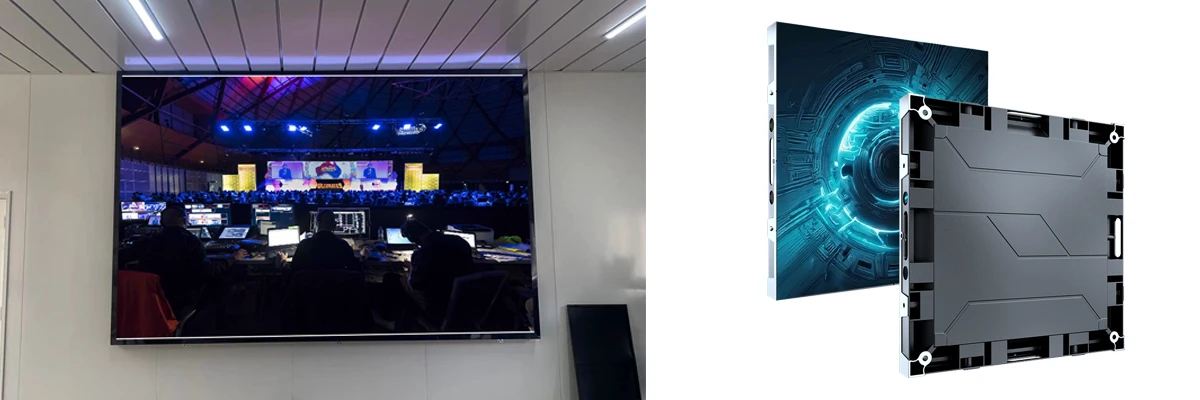

This indoor LED display cabinet is specially designed for indoor high-definition displays screen. It supports front maintenance and its size just 480x480mm, compatible with P1.579/P1.875/P2.5 led display modules.
Front Maintenance design

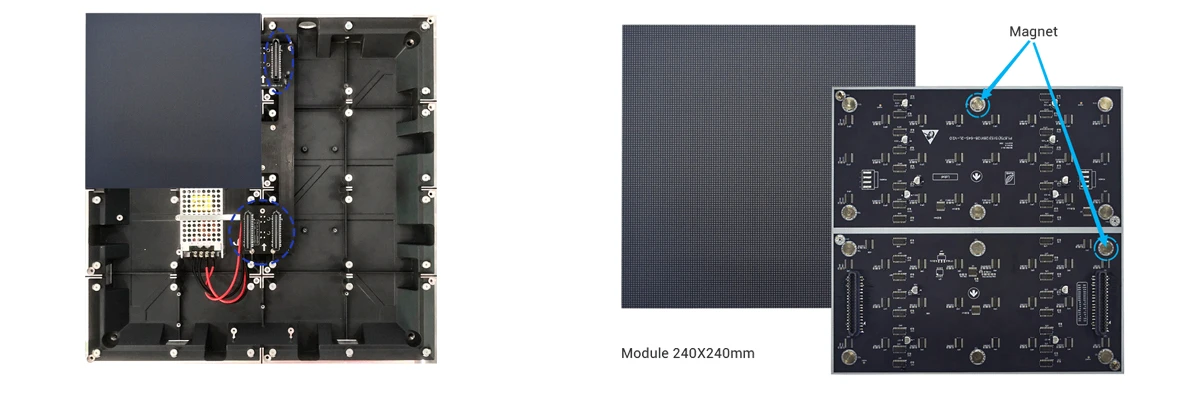

Using hole-free magnets to install led display modules, during installation and maintenance, you only need to remove the module for repair or replacement, saving time and maintenance costs for disassembly.
Hard connection
The plug-and-play hard-wired design eliminates the need to connect wires manually, making it simple and safe. It also increases the internal heat dissipation space.
Ultra-thin led display cabinet

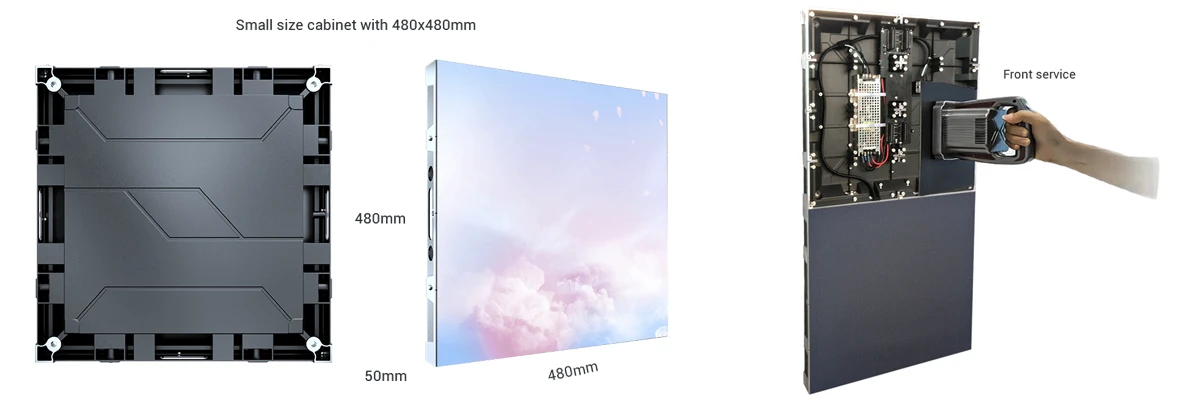

The cabinet size only 480x480mm and thickness just 50mm,Easy transportation and installation make it the preferred choice for indoor high-definition displays.
Specification
| Pixel Pitch (mm) | P1.579 | P1.875 | P2.5 |
| Pixel Configuration | SMD1010 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 401111 | 284444 | 160000 |
| Module Resolution (Pixel) | 152x76 | 128x128 | 96x96 |
| Module Size (mm) | 240x120 | ||
| Driving Mode (Duty) | 1/38 | 1/64 | 1/48 |
| Cabinet Size (mm) | 480x480 | ||
| Cabinet Weight (KG) | 5.6 | ||
| Brightness (CD/㎡) | 300~800 | ||
| Viewing Angle (°) | 140 | ||
| Gray Grade (Bits) | ≥13 | ||
| Operation Power | AC100-240V 50-60Hz | ||
| Max. Power Consumption (W/㎡) | ≤ 500 | ||
| Avg. Power Consumption (W/㎡) | 100~280 | 100~300 | |
| Frame Frequency (Hz) | ≥60 | ||
| Refresh Frequency (Hz) | ≥2880~3,840 | ||
| Working Temperature (ºC) | -10～+60 | -10～+60 | -10～+60 |
| Lifetime (Hours) | 100,000 | ||
| Protection Grade | IP35 | ||
