This indoor LED display cabinet is designed to work with high-definition modules, supporting both front and rear maintenance. With a weight of only 300 grams, it is very convenient to carry and install, making it suitable for indoor small-pitch display screens.
Front&Back side maintenance
The front and rear service design solves maintenance issues perfectly, whether used for indoor permanent installation or rental purposes, saving costs and time.

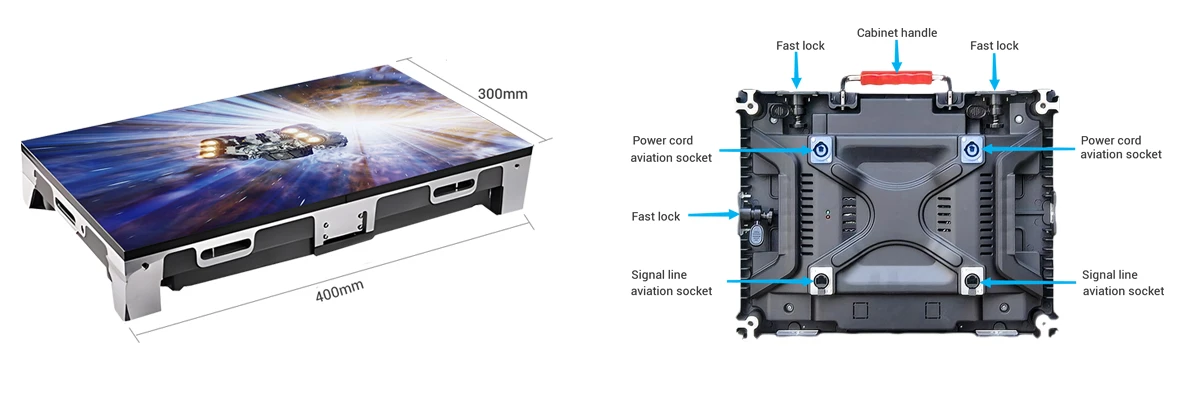

Lightweight LED display cabinet
Ultra-light die-cast aluminum design, weighing only 300 grams, easy to transport and carry. CNC precision machining, smooth edges, no gaps or borders, seamless joint display for a unified and complete look.

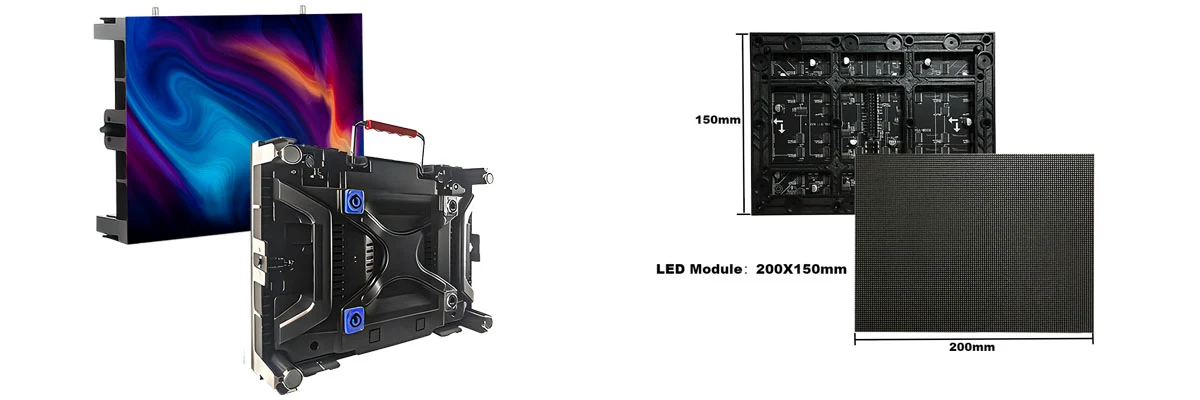

HD Full color LED display screen module
Compatible with indoor P1.25/P1.56/P1.667/P1.923 LED display modules, displaying delicate images with saturated colors, a 140°ultra-wide viewing angle allows for a multi-angle visual and auditory feast.
Specification
| Pixel Pitch (mm) | P1.25 | P1.56 | P1.667 |
| Pixel Configuration | SMD1010 | SMD1212 | |
| Density (Pixels/㎡) | 640,000 | 409,600 | 360,000 |
| Cabinet Resolution (Pixel) | 320x240 | 256x192 | 240x180 |
| Module Size (mm) | 200x150 | ||
| Driving Mode (Duty) | 1/32 | 1/32 | 1/30 |
| Cabinet Size (mm) | 400x300 | ||
| Cabinet Weight (KG) | 4.8 | ||
| Brightness (CD/㎡) | ≥700 | ||
| Viewing Angle (°) | 140 | ||
| Gray Grade (Bits) | ≥16 | ||
| Operation Power | AC110-230V 50-60Hz | ||
| Max. Power Consumption (W/㎡) | ≤800 | ||
| Avg. Power Consumption (W/㎡) | 100~320 | ||
| Frame Frequency (Hz) | ≥60 | ||
| Refresh Frequency (Hz) | ≥3,840 | ||
| Working Temperature (ºC) | -20～+50 | ||
| Lifetime (Hours) | 100,000 | ||
| Protection Grade | IP43 | ||
