Our custom-designed indoor LED display cabinet, measuring a mere 250mm in width. This LED cabinet boasts effortless installation and removal, facilitating convenient transportation and maintenance. Its exceptional heat dissipation and low power consumption make it the perfect choice for retail stores, shopping malls, and exhibition halls.etc

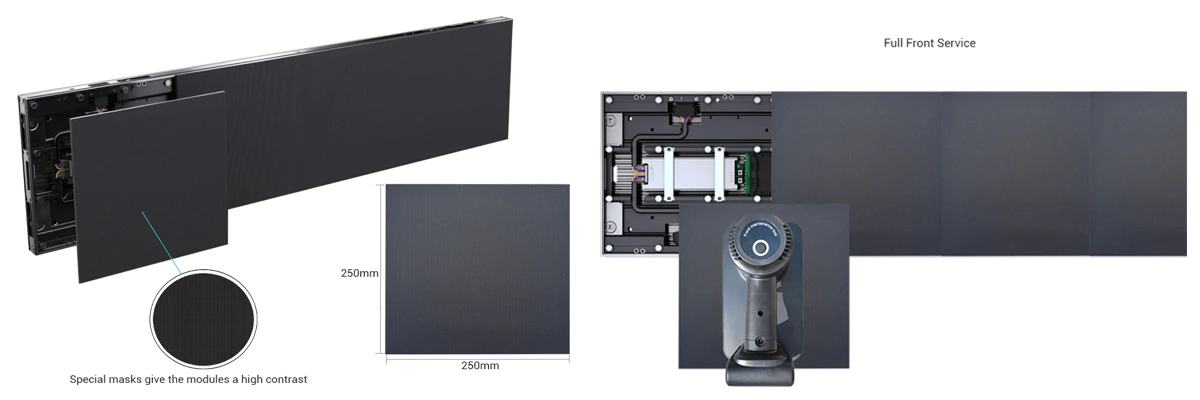

Full front maintenance

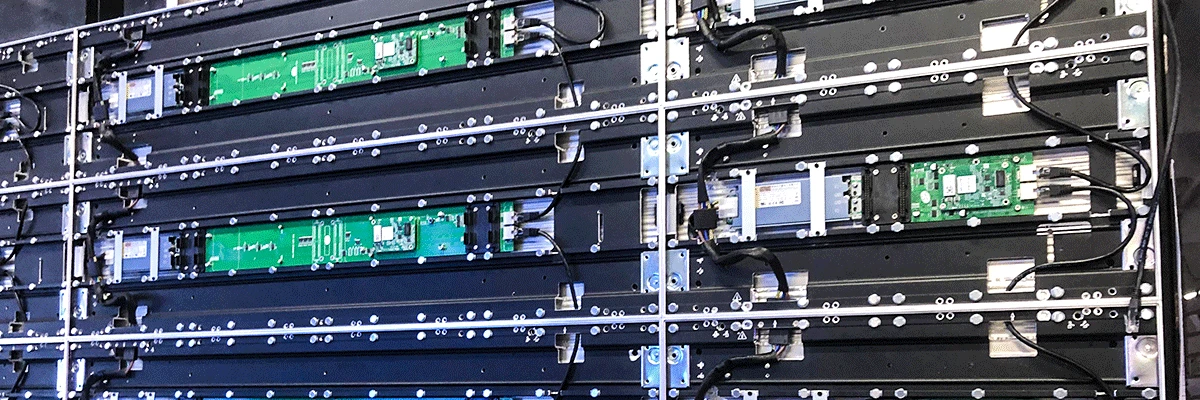

Featuring the front maintenance design, this LED display cabinet simplifies installation and removal of modules using magnetic adsorption. This streamlined approach facilitates effortless maintenance tasks, as power supplies, receiving cards, and other components can be accessed directly through the modules without disassembling the entire cabinet. The reduced cabling not only enhances safety for technicians but also creates more ample workspace, optimizes heat dissipation, and extends the cabinet's lifespan

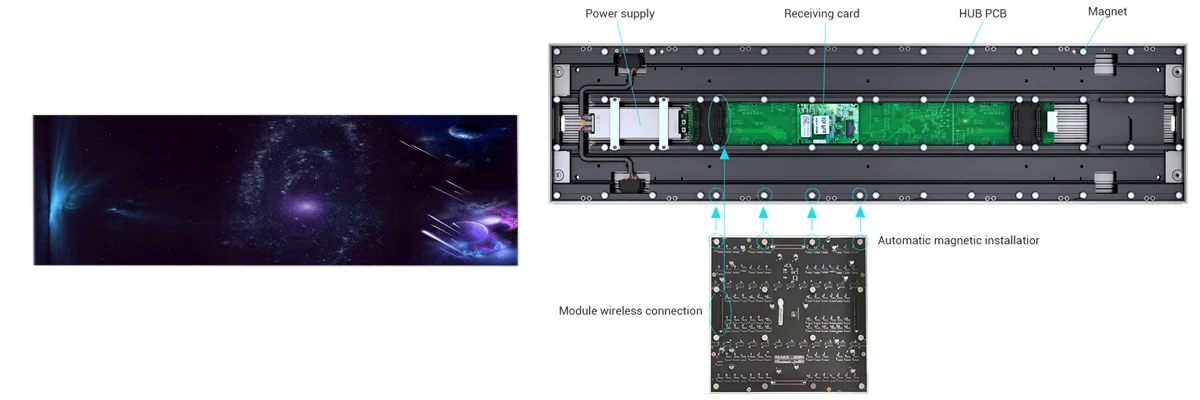

Wirelss hard connection
This indoor LED display cabinet take the plug-and-play hard connection method and utilizes magnetic adsorption for module installation, simplifying the installation and removal process and facilitating effortless maintenance. During maintenance, there's no need to disassemble the mounting brackets; simply open the module for quick and safe access. This design is ideal for applications requiring fixed installation.
Die-case aluminum LED cabinet
The die-cast aluminum cabinet's lightweight and durable construction makes it suitable for various installation scenarios, including indoor suspension, fixed mounting, and rental applications.
| Pixel pitch | P1.25 | P1.5625 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED type | SMD1010 (GOB) | SMD1212 (GOB) | SMD1515 | ||||
| Physical density(Dot/sqm) | 640000 | 409600 | 262144 | 262144 | 262144 | 112896 | 65536 |
| Module resolution | 200X200 | 160X160 | 128X128 | 84X84 | 64X64 | ||
| Module dimension(mm) | 250X250mm | ||||||
| Maintenance | Front access | ||||||
| Cabinet material | Aluminum | ||||||
| Brightness(Nits) | 600 | 800 | 1000 | ||||
| Color temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional |
| Viewing angle(V/H) | 160°/160° | ||||||
| Brightness/Color uniformity | ≥97% | ||||||
| Contrast | 10000 : 1 | ||||||
| Frame frequency | 50/60 | ||||||
| Drive mode | 1/50 scan | 1/40 scan | 1/32 scan | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Gray level | 14/16 Optional | ||||||
| Refresh rate(Hz) | 3840 | ||||||
| Max. power consumption(W/sqm) | 650 | ||||||
| Avg. power consumption(W/sqm) | 100-200 | ||||||
| Protection level | IP31 | ||||||
| Power input | AC90-264V,47-63Hz | ||||||
| Wroking temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||||
| Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||||
